2SC2613 - NPN Transistor

The 2SC2613 by INCHANGE is a NPN Transistor. Below is the official datasheet preview.

📥 Download Datasheet

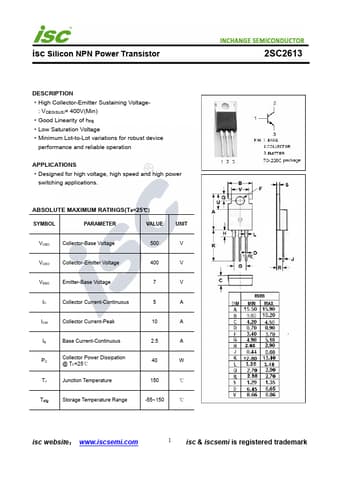

Official preview page of the 2SC2613 NPN Transistor datasheet (INCHANGE).

Datasheet Details

Part number 2SC2613
Manufacturer INCHANGE
File Size 188.66 KB
Description NPN Transistor
Datasheet download datasheet 2SC2613-INCHANGE.pdf
Additional preview pages of the 2SC2613 datasheet.

2SC2613 Product details

Description

High Collector-Emitter Sustaining Voltage- : VCEO(SUS)= 400V(Min) Good Linearity of hFE Low Saturation Voltage Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for high voltage, high speed and high power switching applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 500 V VCEO Collector-Emitter Voltage 400 V VEBO Emitter-Base Voltage 7 V IC Collect
