2SC245 - NPN Transistor

The 2SC245 by INCHANGE is a NPN Transistor. Below is the official datasheet preview.

📥 Download Datasheet

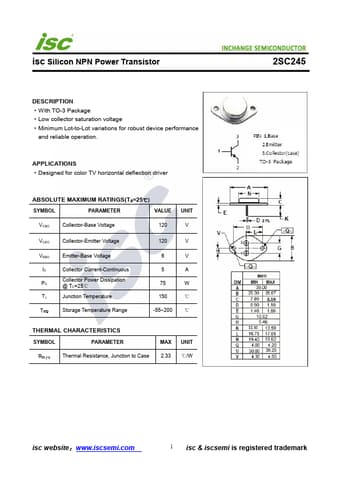

Official preview page of the 2SC245 NPN Transistor datasheet (INCHANGE).

Datasheet Details

Part number 2SC245
Manufacturer INCHANGE
File Size 172.97 KB
Description NPN Transistor
Datasheet download datasheet 2SC245-INCHANGE.pdf
Additional preview pages of the 2SC245 datasheet.

2SC245 Product details

Description

With TO-3 Package Low collector saturation voltage Minimum Lot-to-Lot variations for robust device performance and reliable operation.APPLICATIONS Designed for color TV horizontal deflection driver ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 120 V VCEO Collector-Emitter Voltage 120 V VEBO IC PC TJ Tstg Emitter-Base Voltage Collector Current-Continuous Collector Power Dissipation @ TC=25℃ Junction Temperature Storag
