2SC2351 - Silicon NPN RF Transistor

The 2SC2351 by INCHANGE is a Silicon NPN RF Transistor. Below is the official datasheet preview.

📥 Download Datasheet

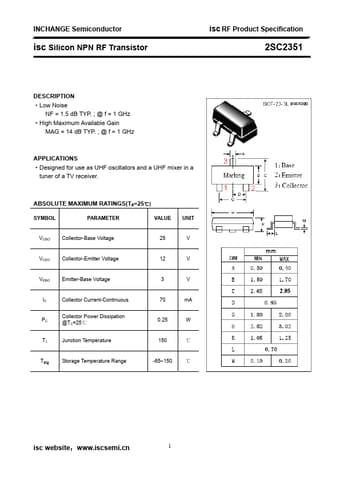

Official preview page of the 2SC2351 Silicon NPN RF Transistor datasheet (INCHANGE).

Datasheet Details

Part number 2SC2351
Manufacturer INCHANGE
File Size 133.51 KB
Description Silicon NPN RF Transistor
Datasheet download datasheet 2SC2351-INCHANGE.pdf
Additional preview pages of the 2SC2351 datasheet.

2SC2351 Product details

Description

Low Noise NF = 1.5 dB TYP.; @ f = 1 GHz High Maximum Available Gain MAG = 14 dB TYP.; @ f = 1 GHz APPLICATIONS Designed for use as UHF oscillators and a UHF mixer in a tuner of a TV receiver.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 25 V VCEO Collector-Emitter Voltage VEBO Emitter-Base Voltage IC Collector Current-Continuous PC Collector Power Dissipation @TC=25℃ TJ Junction Temperature Tstg Storage Temperature R
