2SC2275 - NPN Transistor

The 2SC2275 by INCHANGE is a NPN Transistor. Below is the official datasheet preview.

📥 Download Datasheet

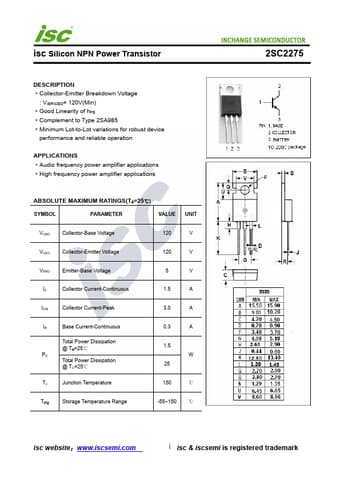

Official preview page of the 2SC2275 NPN Transistor datasheet (INCHANGE).

Datasheet Details

Part number 2SC2275
Manufacturer INCHANGE
File Size 194.31 KB
Description NPN Transistor
Datasheet download datasheet 2SC2275-INCHANGE.pdf
Additional preview pages of the 2SC2275 datasheet.

2SC2275 Product details

Description

Collector-Emitter Breakdown Voltage : V(BR)CEO= 120V(Min) Good Linearity of hFE Complement to Type 2SA985 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Audio frequency power amplifier applications High frequency power amplifier applications ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage 120 V VCEO Collector-Emitter Voltage 120 V VEBO Emitter-Base Voltage 5 V I
