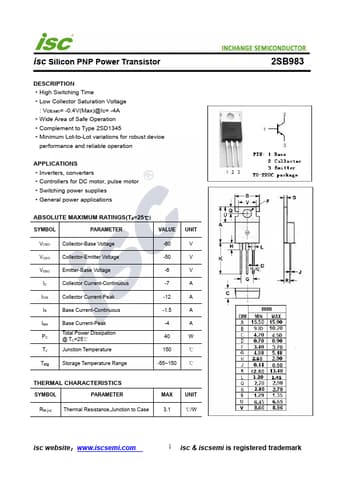

isc Silicon PNP Power Transistor
DESCRIPTION ·High Switching Time ·Low Collector Saturation Voltage
: VCE(sat)= -0.4V(Max)@IC= -4A ·Wide Area of Safe Operation ·Complement to Type 2SD1345 ·Minimum Lot-to-Lot variations for robust device
performance and reliable operation
APPLICATIONS ·Inverters, converters ·Controllers for DC motor, pulse motor ·Switching power supplies ·General power applications
ABSOLUTE MAXIMUM RATINGS(Ta=25℃)
SYMBOL
PARAMETER
VALUE
UNIT
VCBO VCEO VEBO
IC ICM IB IBM PC TJ Tstg
Collector-Base Voltage Collector-Emitter Voltage Emitter-Base Voltage Collector Current-Continuous Collector Current-Peak Base Current-Continuous Base Current-Peak Total Power Dissipation @ TC=25℃ Junction Temperature Storage Temperature Range
-60
V
-50
V
-6
V
-7
A
-12
A
-1.
