2SB692 - PNP Transistor

The 2SB692 by INCHANGE is a PNP Transistor. Below is the official datasheet preview.

📥 Download Datasheet

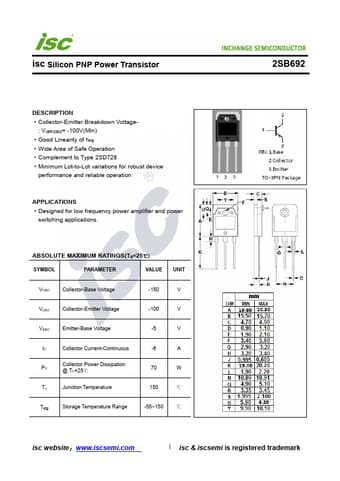

Official preview page of the 2SB692 PNP Transistor datasheet (INCHANGE).

Datasheet Details

Part number 2SB692
Manufacturer INCHANGE
File Size 216.71 KB
Description PNP Transistor
Datasheet download datasheet 2SB692-INCHANGE.pdf
Additional preview pages of the 2SB692 datasheet.

2SB692 Product details

Description

Collector-Emitter Breakdown Voltage- : V(BR)CEO= -100V(Min) Good Linearity of hFE Wide Area of Safe Operation Complement to Type 2SD728 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for low frequency power amplifier and power switching applications.ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -150 V VCEO Collector-Emitter Voltage -100 V VEBO Emitter
