2SB673 - PNP Transistor

The 2SB673 by INCHANGE is a PNP Transistor. Below is the official datasheet preview.

📥 Download Datasheet

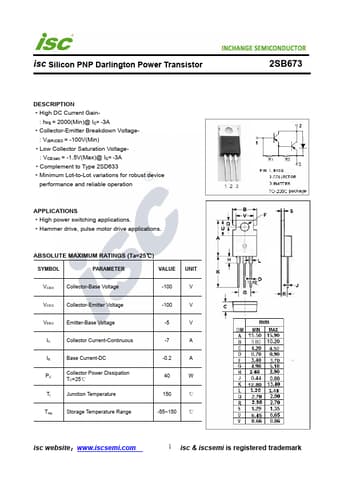

Official preview page of the 2SB673 PNP Transistor datasheet (INCHANGE).

Datasheet Details

Part number 2SB673
Manufacturer INCHANGE
File Size 210.31 KB
Description PNP Transistor
Datasheet download datasheet 2SB673-INCHANGE.pdf
Additional preview pages of the 2SB673 datasheet.

2SB673 Product details

Description

High DC Current Gain- : hFE = 2000(Min)@ IC= -3A Collector-Emitter Breakdown Voltage- : V(BR)CEO = -100V(Min) Low Collector Saturation Voltage- : VCE(sat) = -1.5V(Max)@ IC= -3A Complement to Type 2SD633 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS High power switching applications. Hammer drive, pulse motor drive applications.
