2SB608 - PNP Transistor

Description

Collector-Emitter BreakdownVoltage- : V(BR)CEO= -180V(Min.) Low Collector Saturation Voltage- : VCE(sat)= -1.0(Max.) @IC= -0.5A Good Linearity of hFE Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for power amplifier

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SB600 SILICON POWER TRANSISTOR SavantIC
2SB601 PNP Transistor NEC
2SB601 SILICON POWER TRANSISTOR SavantIC
2SB605 PNP SILICON TRANSISTOR NEC
2SB609 SILICON POWER TRANSISTOR SavantIC

Other Datasheets by Inchange Semiconductor

Part Number Description
2SB600 PNP Transistor
2SB601 PNP Transistor
2SB604 PNP Transistor
2SB609 PNP Transistor
2SB611 Silicon PNP Power Transistor

Full PDF Text Transcription

Click to expand full text

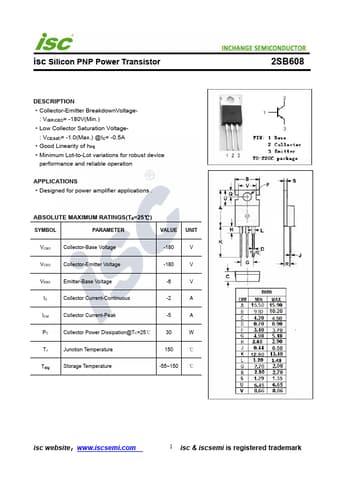

isc Silicon PNP Power Transistor INCHANGE Semiconductor 2SB608 DESCRIPTION ·Collector-Emitter BreakdownVoltage- : V(BR)CEO= -180V(Min.) ·Low Collector Saturation Voltage- : VCE(sat)= -1.0(Max.) @IC= -0.5A ·Good Linearity of hFE ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Designed for power amplifier applications . ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -180 V VCEO Collector-Emitter Voltage -180 V VEBO Emitter-Base Voltage -6 V IC Collector Current-Continuous -2 A ICM Collector Current-Peak -5 A PC Collector Power Dissipation@TC=25℃ 30 W TJ Junction Temperature 150 ℃ Tstg Storage Temperature -55~150 ℃ isc website：www.iscsemi.
