2SB1016 - PNP Transistor

Description

Low Collector Saturation Voltage- : VCE(sat)= -2.0 V(Max)@IC= -4A Good Linearity of hFE Complement to Type 2SD1407 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS

Designed for audio frequency power amplifier applications.

📥 Download Datasheet

📁 Similar Datasheet

  • 2SB1016 - SILICON PNP TRANSISTOR (Toshiba)
  • 2SB1016 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SB1016A - Silicon PNP Transistor (Toshiba Semiconductor)
  • 2SB1010 - PNP Silicon Transistor (Rohm)
  • 2SB1011 - Silicon PNP triple diffusion planar type Transistor (Panasonic Semiconductor)
  • 2SB1012 - Silicon PNP Epitaxial Transistor (Hitachi Semiconductor)
  • 2SB1012K - Silicon PNP Epitaxial Transistor (Hitachi Semiconductor)
  • 2SB1015 - Silicon PNP Transistor (Toshiba Semiconductor)
  • 2SB1015 - SILICON POWER TRANSISTOR (SavantIC)
  • 2SB1015A - Silicon PNP Transistor (Toshiba Semiconductor)
Other Datasheets by INCHANGE

Full PDF Text Transcription

Click to expand full text

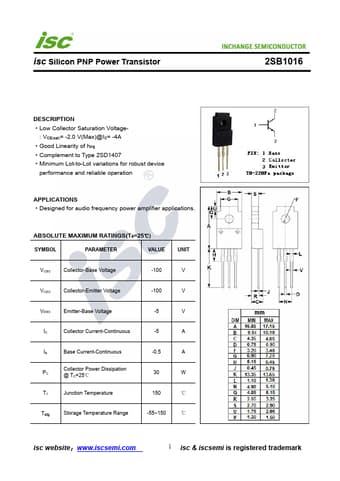

isc Silicon PNP Power Transistor 2SB1016 DESCRIPTION ·Low Collector Saturation Voltage- : VCE(sat)= -2.0 V(Max)@IC= -4A ·Good Linearity of hFE ·Complement to Type 2SD1407 ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Designed for audio frequency power amplifier applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -100 V VCEO Collector-Emitter Voltage -100 V VEBO Emitter-Base Voltage -5 V IC Collector Current-Continuous -5 A IB Base Current-Continuous PC Collector Power Dissipation @ TC=25℃ TJ Junction Temperature -0.5 A 30 W 150 ℃ Tstg Storage Temperature Range -55~150 ℃ isc website：www.iscsemi.
