2SA680 - PNP Transistor

Description

High Power Dissipation- : PC= 100W(Max.)@TC=25℃ Collector-Emitter Breakdown Voltage- : V(BR)CEO= -100V(Min.) Complement to Type 2SC1080 Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS Designed for audio power amplifier applica

📥 Download Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
2SA680 (2SA679 / 2SA680) Silicon POwer Transistors SavantIC
2SA683 Silicon PNP epitaxial planer type Transistor Panasonic Semiconductor
2SA683 PNP Transistor SEMTECH
2SA683 Silicon PNP transistor BLUE ROCKET ELECTRONICS
2SA683 PNP Silicon Epitaxial Planar Transistor CHINA BASE

Other Datasheets by Inchange Semiconductor

Part Number Description
2SA614 Silicon PNP Power Transistor
2SA635 PNP Transistor
2SA671 PNP Transistor
2SA1002 Silicon PNP Power Transistor
2SA1006A PNP Transistor

Full PDF Text Transcription

Click to expand full text

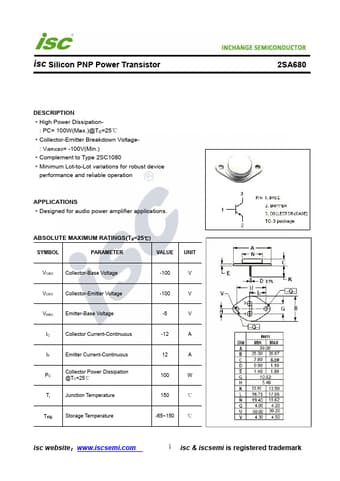

isc Silicon PNP Power Transistor 2SA680 DESCRIPTION ·High Power Dissipation- : PC= 100W(Max.)@TC=25℃ ·Collector-Emitter Breakdown Voltage- : V(BR)CEO= -100V(Min.) ·Complement to Type 2SC1080 ·Minimum Lot-to-Lot variations for robust device performance and reliable operation APPLICATIONS ·Designed for audio power amplifier applications. ABSOLUTE MAXIMUM RATINGS(Ta=25℃) SYMBOL PARAMETER VALUE UNIT VCBO Collector-Base Voltage -100 V VCEO Collector-Emitter Voltage -100 V VEBO Emitter-Base Voltage -5 V IC Collector Current-Continuous -12 A IE Emitter Current-Continuous PC Collector Power Dissipation @TC=25℃ Tj Junction Temperature 12 A 100 W 150 ℃ Tstg Storage Temperature -65~150 ℃ isc website：www.iscsemi.
