IMP705 - LOW-POWER P SUPERVISOR CIRCUITS

IMP Inc

📥 Download Datasheet

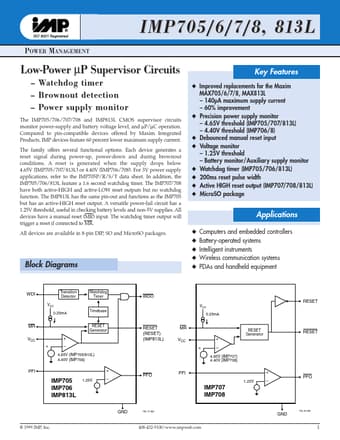

IMP705 Datasheet Preview — Preview of IMP705 PDF

Datasheet Details

Part number	IMP705
Manufacturer	IMP Inc
File Size	167.34 KB
Description	LOW-POWER P SUPERVISOR CIRCUITS
Datasheet	IMP705_IMPInc.pdf

IMP705 Product details

Description

Pin Number IMP705/706 IMP707/708 IMP813L DIP/SO MicroSO DIP/SO MicroSO DIP/SO MicroSO Name 1 2 3 4 5 3 4 5 6 7 1 2 3 4 5 3 4 5 6 7 1 2 3 4 5 3 4 5 6 7 MR VCC GND PFI PFO Function Manual RESET input.The active LOW input triggers a reset pulse.A 250µA pull-up current allows the pin to be driven by TTL / CMOS logic or shorted to ground with a switch.+5V power supply input.Ground reference for all signals.Power-fail voltage monitor input.With PFI less than 1.25V, PFO goes low.Connect PFI to

Features

N Improved replacements for the Maxim MAX705/6/7/8, MAX813L.
140µA maximum supply current.
60% improvement N Precision power supply monitor.
4.65V threshold (IMP705/707/813L).
4.40V threshold (IMP706/8) N Debounced manual reset input N Voltage monitor.
1.25V threshold.
Battery monitor/Auxiliary supply monitor N Watchdog timer (IMP705/706/813L) N 200ms reset pulse width N Active HIGH reset output (IMP707/708/813L) N MicroSO package Applicatio.
