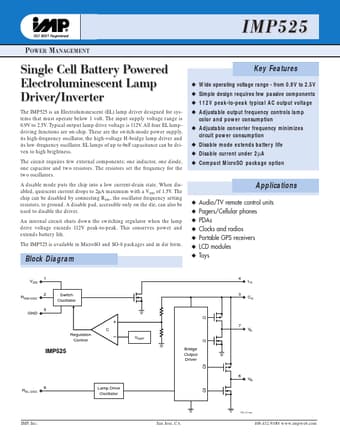

IMP525 - SINGLE CELL BATTERY POWERED ELECTROLUMINESCENT LAMP DRIVER/INVERTER

IMP Inc

IMP525 Datasheet Preview — Preview of IMP525 PDF

Datasheet Details

Part number	IMP525
Manufacturer	IMP Inc
File Size	191.01 KB
Description	SINGLE CELL BATTERY POWERED ELECTROLUMINESCENT LAMP DRIVER/INVERTER
Datasheet	IMP525_IMPInc.pdf

IMP525 Product details

Description

Pin Number 1 2 3 4 5 6 7 8 Disable Pad Name VDD RSW-OSC CS LX GND VB VA REL-OSC DIS Function Positive voltage supply for the IMP525. Inductor L may be connected here or to a separate supply.Switch-mode resistor pin.Switching frequency is determined by external resistor RSW, connected between pin 2 and VDD.Boost converter storage capacitor.The voltage across the EL lamp is equal to twice the voltage at CS.Connection to flyback inductance, L.Ground pin.EL lamp drive.The lamp is connecte

Features

x Wide operating voltage range - from 0.9V to 2.5V x Simple design requires few passive components x 112V peak-to-peak typical AC output voltage x Adjustable output frequency controls lamp color and power consumption x Adjustable converter frequency minimizes circuit power consumption x Disable mode extends battery life x Disable current under 2µA x Compact MicroSO package option.
