IW4098B - Dual Monostable Multivibrator

IK Semiconductor

📥 Download Datasheet

IW4098B Datasheet Preview — Preview of IW4098B PDF

Datasheet Details

Part number	IW4098B
Manufacturer	IK Semiconductor
File Size	193.41 KB
Description	Dual Monostable Multivibrator
Datasheet	IW4098B_IKSemiconductor.pdf

IW4098B Product details

Description

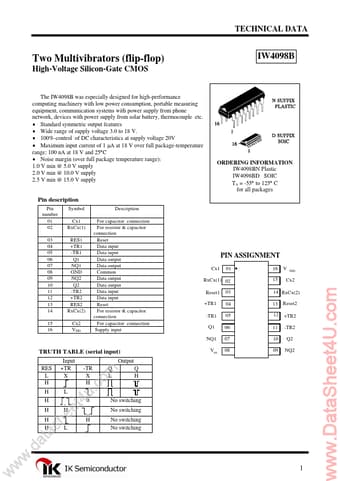

Pin number 01 02 03 04 05 06 07 08 09 10 11 12 13 14 15 16 Symbol Cx1 RxCx(1) RES1 +TR1 -TR1 Q1 NQ1 GND NQ2 Q2 -TR2 +TR2 RES2 RxCx(2) Cx2 VDD Description For capacitor connection For resistor & capacitor connection Reset Data input Data input Data output Data output Common Data output Data output Data input Data input Reset For resistor & capacitor connection For capacitor connection Supply input PIN ASSIGNMENT Cx1 01 16 15 V DD RxCx(1) 02 Reset1 +TR1 -TR1 Q1 NQ1 03 04 05 06 07 08 Cx2 14 RxC

Features

Wide range of supply voltage 3.0 to 18 V.
100%-control of DC characteristics at supply voltage 20V.
Maximum input current of 1 μA at 18 V over full package-temperature range; 100 nA at 18 V and 25°C.
Noise margin (over full package temperature range): 1.0 V min @ 5.0 V supply 2.0 V min @ 10.0 V supply 2.5 V min @ 15.0 V supply.
