IN74HC109A Datasheet (IK Semiconductor) - Dual J-K Positive-Edge-Triggered Flip-Flop

IN74HC109A, Dual J-K Positive-Edge-Triggered Flip-Flop

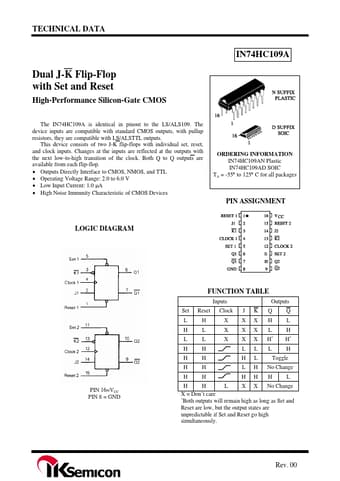

TECHNICAL DATA Dual J-K Flip-Flop with Set and Reset High-Performance Silicon-Gate CMOS IN74HC109A The IN74HC109A is identical in pinout to the LS/ALS109.

The device inputs are compatible with standard CMOS outputs, with pullup resistors, they are compatible with LS/ALSTTL outputs.

This device consists of two J-K flip-flops with individual set, reset, and clock inputs.

Changes at the inputs are reflected at the outputs with the next low-to-high transition of the clock.

Both Q to Q outputs are
