ILA7056B - Mono with DC Control

Description

The ILA7056B is a mono BTL output amplifier with DC volume control, designed for use in TV and monitor but is also suitable for battery-fed portable recorders and radios.

Features

  • DC volume control Few external components Mute mode Thermal protection Short-circuit proof No switch-on and switch-off clicks Good overall stability Low power consumption Low HF radiation ESD protected on all pins.

📥 Download Datasheet

Datasheet Details

Part number ILA7056B
Manufacturer IK Semiconductor
File Size 377.28 KB
Description Mono with DC Control
Datasheet download datasheet ILA7056B Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
ILA7056SH 3 W Mono BTL Audio Output Amplifier ETC
ILA03N60 LightMOS Power Transistor Infineon Technologies
ILA1238NS AM/FM MONO RECEIVER Integral
ILA1238NS AM / FM STEREO RADIO ETC
ILA1519 2 x 6 Watt Stereo Car Radio Power Amplifier ETC

Other Datasheets by IK Semiconductor

Part Number Description
ILA7056B 5 W Mono BTL Audio Amplifier
ILA7056 3 W BTL Mono Audio Output Amplifier
ILA7056 3W Mono BTL Audio Output Amplifier
ILA7050 Mono/Stereo BTL
ILA7052 MONO OUTPUT AMPLIFIER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

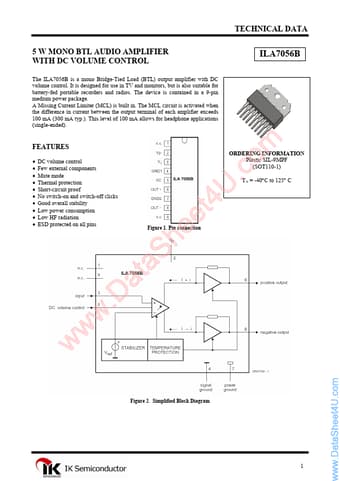

TECHNICAL DATA 5 W MONO BTL AUDIO AMPLIFIER WITH DC VOLUME CONTROL The ILA7056B is a mono Bridge-Tied Load (BTL) output amplifier with DC volume control. It is designed for use in TV and monitors, but is also suitable for battery-fed portable recorders and radios. The device is contained in a 9-pin medium power package. A Missing Current Limiter (MCL) is built in. The MCL circuit is activated when the difference in current between the output terminal of each amplifier exceeds 100 mA (300 mA typ.). This level of 100 mA allows for headphone applications (single-ended).
