IL3842 - Current mode controller

IK Semiconductor

📥 Download Datasheet

IL3842 Datasheet Preview — Preview of IL3842 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IL3842
Manufacturer	IK Semiconductor
File Size	189.62 KB
Description	Current mode controller
Datasheet	IL3842_IKSemiconductor.pdf

IL3842 Product details

Description

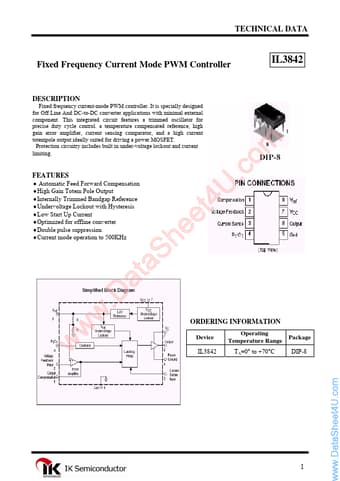

Fixed frequency current-mode PWM controller.

Features

a trimmed oscillator for precise duty cycle control. a temperature compensated reference, high gain arror amplifier, current sensing comparator, and a high current totempole output ideally suited for driving a power MOSFET. Protection circuitry includes built in under-voltage lockout and current limiting.
