IL33193-03 - Automotive Direction Indicator

📥 Download Datasheet

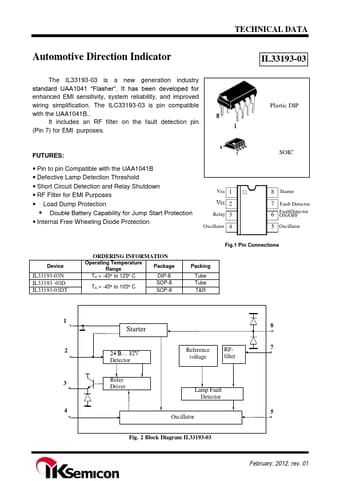

Preview of IL33193-03 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number IL33193-03
Manufacturer IK Semiconductor
File Size 690.46 KB
Description Automotive Direction Indicator
Datasheet download datasheet IL33193-03-IKSemiconductor.pdf

IL33193-03 Product details

Description

Vbat IL33193-03 Relay Relay on off t1 tn Relay off Fn=1/tn Time Fig.7. Normal Operation Oscillator Timing Diagram tf Ft=1/tf Time Fig.8. One Defective Lamp Oscillator Timing Diagram Supply and Protection Systems Pin 1 is connected to ground via resistor R2 which limits the current in the event of any high voltage transients.Pin 2 (VCC) is the positive supply and may be connected directly to the vehicle’s battery voltage.Overvoltage and Double Battery Protection: When the applied VCC
