TSE2004GB2C0 Description

DDR4 Temperature Sensor with Integrated TSE2004GB2C0 4Kbit EEPROM for Memory Module Datasheet .
The TSE2004GB2C0 digital temperature sensor comes with several user-programmable registers to provide maximum flexibility for temperature-sensing appl.

TSE2004GB2C0 Features

* ▪ Compliant to JEDEC TSE2004av Device Specification (JEDEC Standard No. 21-C, Section 4.1.6) ▪ Temperature Sensor plus a 512-byte Serial EEPROM ▪ A 512-byte Serial EEPROM for SPD ▪ Single supply: 2.2V to 3.6V ▪ Accurate timeout support that meets strict SMBus specifications for: 25ms (minimum), 35ms

TSE2004GB2C0 Applications

* The userprogrammable registers specify critical, upper and lower temperature limits, as well as hysteresis settings. Both the limits and hysteresis values are used for communicating temperature events from the chip to the system. This communication is done using the EVENT_n pin, which has an open-d

📥 Download Datasheet

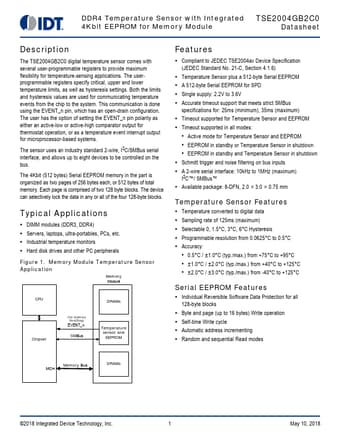

TSE2004GB2C0 Datasheet Preview — Preview of TSE2004GB2C0 PDF

Datasheet Details

Part number: TSE2004GB2C0
Manufacturer: IDT
File Size: 0.96 MB
Datasheet: TSE2004GB2C0-IDT.pdf
Description: DDR4 Temperature Sensor
