IDTP9122 - Dual Channel Synchronous StepDown Switcher

Name: IDTP9122
SKU: IDTP9122-1348262

IDT

📥 Download Datasheet

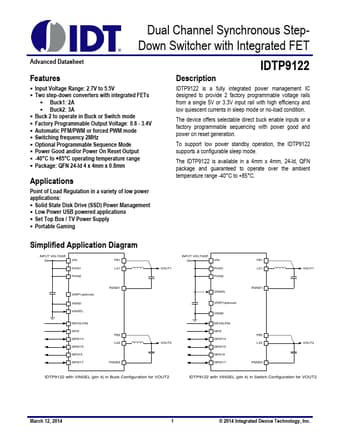

IDTP9122 Datasheet Preview — Preview of IDTP9122 PDF

Datasheet Details

Part number	IDTP9122
Manufacturer	IDT
File Size	549.59 KB
Description	Dual Channel Synchronous StepDown Switcher
Datasheet	IDTP9122-IDT.pdf

IDTP9122 Product details

Description

IDTP9122 is a fully integrated power management IC designed to provide 2 factory programmable voltage rails from a single 5V or 3.3V input rail with high efficiency and low quiescent currents in sleep mode or n

Features

Input Voltage Range: 2.7V to 5.5V.
Two step-down converters with integrated FETs.
Buck1: 2A.
Buck2: 3A.
Buck 2 to operate in Buck or Switch mode.
Factory Programmable Output Voltage: 0.8 - 3.4V.
Automatic PFM/PWM or forced PWM mode.
Switching frequency 2MHz.
Optional Programmable Sequence Mode.
Power Good and/or Power On Reset Output.
-40°C to +85°C operating temperature range.
Package: QFN 24-ld 4 x 4mm x 0.8mm.
