IDTF1953 - 6-bit Digital Step Attenuator

IDT

📥 Download Datasheet

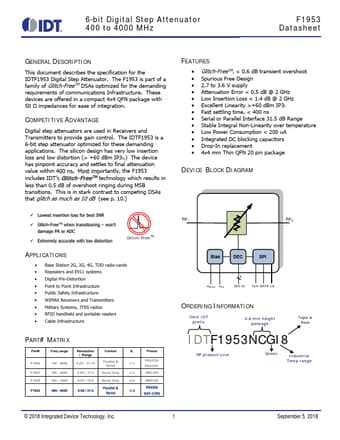

IDTF1953 Datasheet Preview — Preview of IDTF1953 PDF

datasheet Preview Page 2

datasheet Preview Page 3

Datasheet Details

Part number	IDTF1953
Manufacturer	IDT
File Size	1.63 MB
Description	6-bit Digital Step Attenuator
Datasheet	IDTF1953-IDT.pdf

IDTF1953 Product details

Description

This document describes the specification for the IDTF1953 Digital Step Attenuator.

Features

Glitch-FreeTM, < 0.6 dB transient overshoot.
Spurious Free Design.
2.7 to 3.6 V supply.
Attenuation Error < 0.5 dB @ 2 GHz.
Low Insertion Loss < 1.4 dB @ 2 GHz.
Excellent Linearity >+60 dBm IP3I.
Fast settling time, < 400 ns.
Serial or Parallel Interface 31.5 dB Range.
Stable Integral Non-Linearity over temperature.
Low Power Consumption < 200 uA.
Integrated DC blocking capacitors.
Drop-In replacement.
4x4 mm Thin QFN 20 pin packa.
