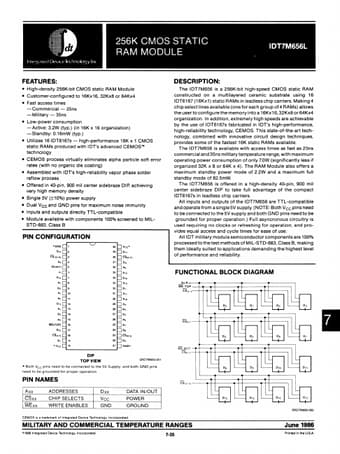

IDT7M656L - 256K CMOS Static RAM Module

Features

  • High-density 256K-bit CMOS static RAM Module.
  • Customer-configured to 16Kx16, 32Kx8 or 64Kx4.
  • Fast access times -Commercial - 25ns -Military - 35ns.
  • Low-power consumption -Active: 3.2W (typ. ) (in 16K x 16 organization) -Standby: 0.16mW (typ. ).
  • Utilizes 161DT6167s - high-performance 16K x 1 CMOS static RAMs produced with IDT's advanced CEMOS~ technology.
  • CEMOS process virtually eliminates alpha particle soft error rates (with no organic die c.

📥 Download Datasheet

Datasheet Details

Part number IDT7M656L
Manufacturer IDT
File Size 400.56 KB
Description 256K CMOS Static RAM Module
Datasheet download datasheet IDT7M656L Datasheet

📁 Similar Datasheet

  • IDT7M1001 - 128K x 8 64K x 8 CMOS DUAL-PORT STATIC RAM MODULE (Integrated Device)
  • IDT7M1002 - 16K x 32 CMOS DUAL-PORT STATIC RAM MODULE (Integrated Device)
  • IDT7M1003 - 128K x 8 64K x 8 CMOS DUAL-PORT STATIC RAM MODULE (Integrated Device)
  • IDT7M1014 - 4K x 36 BiCMOS DUAL-PORT STATIC RAM MODULE (Integrated Device)
  • IDT7M1024 - 4K x 36 BiCMOS SYNCHRONOUS DUAL-PORT STATIC RAM MODULE (Integrated Device)
  • IDT7M812 - 512K CMOS STATIC RAM Module (Integrated Device Technology)
  • IDT7M912 - 512K CMOS STATIC RAM Module (Integrated Device Technology)
  • IDT7M9510 - PCI MEZZANINE CARD (Integrated Device Technology)
  • IDT7M9514 - PCI MEZZANINE CARD (Integrated Device Technology)
  • IDT7MB4048 - 512K x 8 CMOS STATIC RAM MODULE (Integrated Device)
Other Datasheets by IDT

Full PDF Text Transcription

Click to expand full text
FEATURES: • High-density 256K-bit CMOS static RAM Module • Customer-configured to 16Kx16, 32Kx8 or 64Kx4 • Fast access times -Commercial - 25ns -Military - 35ns • Low-power consumption -Active: 3.2W (typ.) (in 16K x 16 organization) -Standby: 0.16mW (typ.) • Utilizes 161DT6167s - high-performance 16K x 1 CMOS static RAMs produced with IDT's advanced CEMOS~ technology • CEMOS process virtually eliminates alpha particle soft error rates (with no organic die coating) • Assembled with IDT's high-reliability vapor phase solder reflow process • Offered in 40-pin, 900 mil center sidebraze DIP.
