IDT74FCT827A, IDT74FCT827 - HIGH-PERFORMANCE CMOS BUFFERS

Datasheet Details

Part number	IDT74FCT827A, IDT74FCT827
Manufacturer	IDT
File Size	111.98 KB
Description	HIGH-PERFORMANCE CMOS BUFFERS

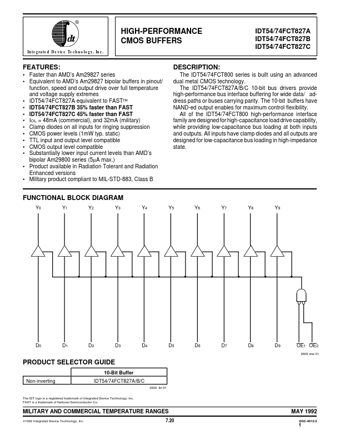

Datasheet	IDT74FCT827_IntegratedDeviceTechnology.pdf
Note	This datasheet PDF includes multiple part numbers: IDT74FCT827A, IDT74FCT827. Please refer to the document for exact specifications by model.

The IDT54/74FCT800 series is built using an advanced dual metal CMOS technology.

Faster than AMD’s Am29827 series.
Equivalent to AMD’s Am29827 bipolar buffers in pinout/ function, speed and output drive over full temperature and voltage supply extremes.
IDT54/74FCT827A equivalent to FAST™.
IDT54/74FCT827B 35% faster than FAST.
IDT54/74FCT827C 45% faster than FAST.
IOL = 48mA (commercial), and 32mA (military).
Clamp diodes on all inputs for ringing suppression.
CMOS power levels (1mW typ. static).
