IDT74FCT162646CT - FAST CMOS 16-BIT BUS TRANSCEIVER/REGISTERS

Download the IDT74FCT162646CT datasheet PDF. This datasheet also covers the IDT74FCT162646 variant, as both devices belong to the same fast cmos 16-bit bus transceiver/registers family and are provided as variant models within a single manufacturer datasheet.

Features

  • FCT16646T/AT/CT/ET:.
  • High drive outputs (-32mA IOH, 64mA IOL).
  • Power off disable outputs permit “live insertion”.
  • Typical VOLP (Output Ground Bounce) < 1.0V at VCC = 5V, TA = 25°C.
  • Features for FCT162646T/AT/CT/ET:.
  • Balanced Output Drivers: ±24mA (commercial), ±16mA (military).
  • Reduced system switching noise.
  • Typical VOLP (.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IDT74FCT162646_IntegratedDeviceTechnology.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number IDT74FCT162646CT
Manufacturer IDT
File Size 177.24 KB
Description FAST CMOS 16-BIT BUS TRANSCEIVER/REGISTERS
Datasheet download datasheet IDT74FCT162646CT Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IDT74FCT162240T FAST CMOS 16-BIT BUFFER/LINE DRIVER Integrated Device Tech
IDT74FCT162244T FAST CMOS 16-BIT BUFFER/LINE DRIVER Integrated Device Tech
IDT74FCT162245AT FAST CMOS 16-BIT BIDIRECTIONAL TRANSCEIVER Renesas
IDT74FCT162245CT FAST CMOS 16-BIT BIDIRECTIONAL TRANSCEIVER Renesas
IDT74FCT162245T FAST CMOS 16-BIT BIDIRECTIONAL TRANSCEIVERS Integrated Device Tech

Other Datasheets by IDT

Part Number Description
IDT74FCT162646AT FAST CMOS 16-BIT BUS TRANSCEIVER/REGISTERS
IDT74FCT162646ET FAST CMOS 16-BIT BUS TRANSCEIVER/REGISTERS
IDT74FCT162646T FAST CMOS 16-BIT BUS TRANSCEIVER/REGISTERS
IDT74FCT16260AT FAST CMOS 12-BIT TRI-PORT BUS EXCHANGER
IDT74FCT16260CT FAST CMOS 12-BIT TRI-PORT BUS EXCHANGER

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

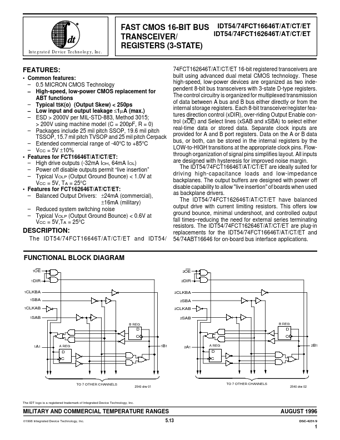

Integrated Device Technology, Inc. FAST CMOS 16-BIT BUS IDT54/74FCT16646T/AT/CT/ET TRANSCEIVER/ IDT54/74FCT162646T/AT/CT/ET REGISTERS (3-STATE) FEATURES: • Common features: – 0.5 MICRON CMOS Technology – High-speed, low-power CMOS replacement for ABT functions – Typical tSK(o) (Output Skew) < 250ps – Low input and output leakage ≤1µA (max.) – ESD > 2000V per MIL-STD-883, Method 3015; > 200V using machine model (C = 200pF, R = 0) – Packages include 25 mil pitch SSOP, 19.6 mil pitch TSSOP, 15.7 mil pitch TVSOP and 25 mil pitch Cerpack – Extended commercial range of -40°C to +85°C – VCC = 5V ±10% • Features for FCT16646T/AT/CT/ET: – High drive outputs (-32mA IOH, 64mA IOL) – Power off disable outputs permit “live insertion” – Typical VOLP (Output Ground Bounce) < 1.
