IDT74AHCT138, IDT54AHCT138 - High Speed CMOS 1-of-8 Decoder

IDT

📥 Download Datasheet

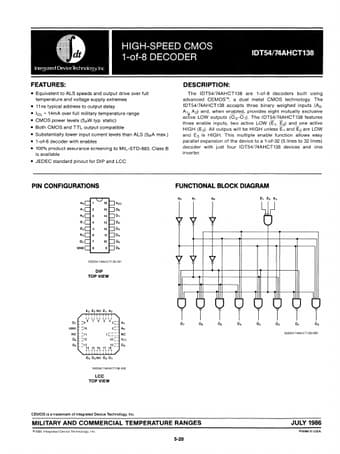

IDT74AHCT138 Datasheet Preview — This datasheet PDF includes multiple part numbers: IDT74AHCT138, IDT54AHCT138. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	IDT74AHCT138, IDT54AHCT138
Manufacturer	IDT
File Size	192.14 KB
Description	High Speed CMOS 1-of-8 Decoder
Datasheet	IDT54AHCT138-IDT.pdf
Note	This datasheet PDF includes multiple part numbers: IDT74AHCT138, IDT54AHCT138. Please refer to the document for exact specifications by model.

IDT74AHCT138 Product details

Description

The IDT54174AHCT138 are 1-of-8 decoders built using advanced CEMOS", a dual metal CMOS technology.The IDT54/74AHCT138 accepts three binary weighed inputs (Ao, A" AiJ and, when enabled, provides eight mutually exclusive aciive lOW outputs (00-07), The IDT54/74AHCT138

Features

Equivalent to AlS speeds and output drive over full temperature and voltage supply extremes.
11 ns typical address to output delay.
IOl = 14mA over full military temperature range.
CMOS power levels (5/lW typo static).
Both CMOS and TTL output compatible.
Substantially lower input current levels than AlS (5/lA max. ).
1-of-8 decoder with enables.
100% product assurance screening to Mll-STD-883, Class B is available.
