IDT71V2556XS, IDT71V2556S 3.3V Synchronous ZBT SRAMs

IDT71V2556XS Description

128K x 36 3.3V Synchronous ZBT™ SRAMs 2.5V I/O, Burst Counter Pipelined Outputs IDT71V2556S/XS IDT71V2556SA/XSA .
The IDT71V2556 is a 3.

IDT71V2556XS Features

* 128K x 36 memory configurations
* Supports high performance system speed - 166 MHz (3.5 ns Clock-to-Data Access)
* ZBTTM Feature - No dead cycles between write and read cycles
* Internally synchronized output buffer enable eliminates the need to control OE
* Single R/W (READ/WR

IDT71V2556XS Applications

* 4-word burst capability (interleaved or linear)
* Individual byte write (BW1 - BW4) control (May tie active)
* Three chip enables for simple depth expansion
* 3.3V power supply (±5%), 2.5V I/O Supply (VDDQ)
* Optional - Boundary Scan JTAG Interface (IEEE 1149.1 complaint)

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: IDT71V2556XS, IDT71V2556S. Please refer to the document for exact specifications by model.

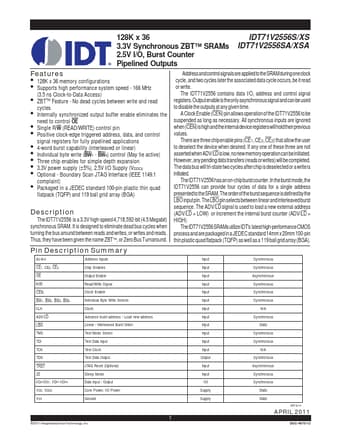

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
IDT71V2556XS, IDT71V2556S
Manufacturer
IDT
File Size
302.55 KB
Datasheet
IDT71V2556S-IDT.pdf
Description
3.3V Synchronous ZBT SRAMs
Note
This datasheet PDF includes multiple part numbers: IDT71V2556XS, IDT71V2556S.
Please refer to the document for exact specifications by model.
