IDT709169 - HIGH-SPEED 16/8K x 9 SYNCHRONOUS PIPELINED DUAL-PORT STATIC RAM

Download the IDT709169 datasheet PDF. This datasheet also covers the IDT709169L variant, as both devices belong to the same high-speed 16/8k x 9 synchronous pipelined dual-port static ram family and are provided as variant models within a single manufacturer datasheet.

Features

  • True Dual-Ported memory cells which allow simultaneous access of the same memory location.
  • High-speed clock to data access.
  • Commercial: 6.5/7.5/9ns (max. ) Industrial: 7.5ns (max. ).
  • Low-power operation.
  • IDT709169/59L Active: 925mW (typ. ) Standby: 2.5mW (typ. ).
  • Flow-Through or Pipelined output mode on either Port via the FT/PIPE pins.
  • Counter enable and reset features.
  • Dual chip enables allow for depth expansion without additional logic Functional B.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IDT709169L-IDT.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number IDT709169
Manufacturer IDT
File Size 167.40 KB
Description HIGH-SPEED 16/8K x 9 SYNCHRONOUS PIPELINED DUAL-PORT STATIC RAM
Datasheet download datasheet IDT709169 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IDT709089L HIGH-SPEED 64K x 8 SYNCHRONOUS DUAL-PORT STATIC RAM Integrated Device Technology
IDT709089S HIGH-SPEED 64K x 8 SYNCHRONOUS DUAL-PORT STATIC RAM Integrated Device Technology
IDT7099S HIGH-SPEED 4K x 9 SYNCHRONOUS DUAL-PORT RAM Integrated Device Technology
IDT7006L HIGH-SPEED 16K x 8 DUAL-PORT STATIC RAM Renesas
IDT7006S HIGH-SPEED 16K x 8 DUAL-PORT STATIC RAM Renesas

Other Datasheets by IDT

Part Number Description
IDT709169L HIGH-SPEED 16/8K x 9 SYNCHRONOUS PIPELINED DUAL-PORT STATIC RAM
IDT709149S HIGH-SPEED 36K (4K x 9-BIT) SYNCHRONOUS PIPELINED DUAL-PORT SRAM
IDT70914S HIGH SPEED 36K (4K X 9) SYNCHRONOUS DUAL-PORT RAM
IDT709159 HIGH-SPEED 16/8K x 9 SYNCHRONOUS PIPELINED DUAL-PORT STATIC RAM
IDT709159L HIGH-SPEED 16/8K x 9 SYNCHRONOUS PIPELINED DUAL-PORT STATIC RAM

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

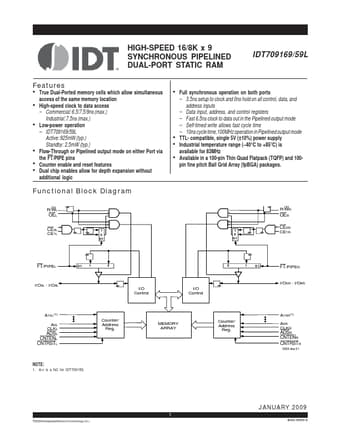

HIGH-SPEED 16/8K x 9 SYNCHRONOUS PIPELINED DUAL-PORT STATIC RAM IDT709169/59L Features ◆ True Dual-Ported memory cells which allow simultaneous access of the same memory location ◆ High-speed clock to data access – Commercial: 6.5/7.5/9ns (max.) Industrial: 7.5ns (max.) ◆ Low-power operation – IDT709169/59L Active: 925mW (typ.) Standby: 2.5mW (typ.) ◆ Flow-Through or Pipelined output mode on either Port via the FT/PIPE pins ◆ Counter enable and reset features ◆ Dual chip enables allow for depth expansion without additional logic Functional Block Diagram ◆ Full synchronous operation on both ports – 3.5ns setup to clock and 0ns hold on all control, data, and address inputs – Data input, address, and control registers – Fast 6.
