IDT70825L - HIGH-SPEED 8K x 16 SEQUENTIAL ACCESS RANDOM ACCESS MEMORY

Download the IDT70825L datasheet PDF. This datasheet also covers the IDT70825S variant, as both devices belong to the same high-speed 8k x 16 sequential access random access memory family and are provided as variant models within a single manufacturer datasheet.

Features

  • x High-speed access.
  • Military: 35/45ns (max. ).
  • Commercial: 20/25/35/45ns (max. ) x Low-power operation.
  • IDT70825S Active: 775mW (typ. ) Standby: 5mW (typ. ).
  • IDT70825L Active: 775mW (typ. ) Standby: 1mW (typ. ) x 8K x 16 Sequential Access Random Access Memory (SARAM™).
  • Sequential Access from one port and standard Random Access from the other port.
  • Separate upper-byte and lower-byte control of the Random Access Port x High speed operation.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IDT70825S-IDT.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number IDT70825L
Manufacturer IDT
File Size 204.14 KB
Description HIGH-SPEED 8K x 16 SEQUENTIAL ACCESS RANDOM ACCESS MEMORY
Datasheet download datasheet IDT70825L Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IDT7006L HIGH-SPEED 16K x 8 DUAL-PORT STATIC RAM Renesas
IDT7006S HIGH-SPEED 16K x 8 DUAL-PORT STATIC RAM Renesas
IDT70121L HIGH-SPEED 2K x 9 DUAL-PORT STATIC RAM Integrated Device Technology
IDT70121S HIGH-SPEED 2K x 9 DUAL-PORT STATIC RAM Integrated Device Technology
IDT70125L HIGH-SPEED 2K x 9 DUAL-PORT STATIC RAM Integrated Device Technology

Other Datasheets by IDT

Part Number Description
IDT70825S HIGH-SPEED 8K x 16 SEQUENTIAL ACCESS RANDOM ACCESS MEMORY
IDT70824L HIGH-SPEED 4K x 16 SEQUENTIAL ACCESS RANDOM ACCESS MEMORY
IDT70824S HIGH-SPEED 4K x 16 SEQUENTIAL ACCESS RANDOM ACCESS MEMORY
IDT7005L HIGH-SPEED 8K x 8 DUAL-PORT STATIC RAM
IDT7005S HIGH-SPEED 8K x 8 DUAL-PORT STATIC RAM

Full PDF Text Transcription

Click to expand full text

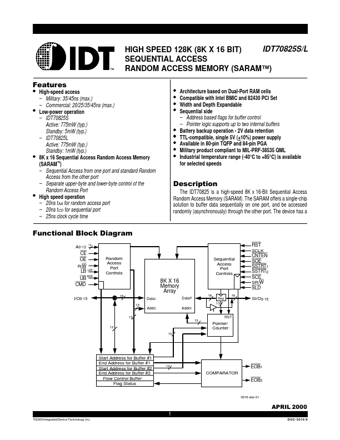

HIGH SPEED 128K (8K X 16 BIT) IDT70825S/L SEQUENTIAL ACCESS RANDOM ACCESS MEMORY (SARAM™) Features x High-speed access – Military: 35/45ns (max.) – Commercial: 20/25/35/45ns (max.) x Low-power operation – IDT70825S Active: 775mW (typ.) Standby: 5mW (typ.) – IDT70825L Active: 775mW (typ.) Standby: 1mW (typ.
