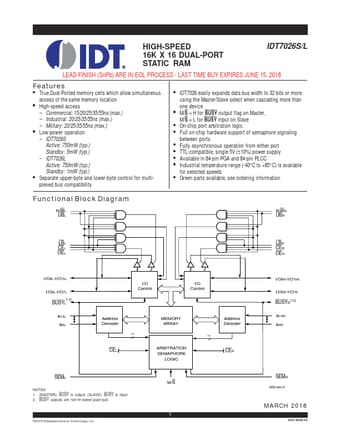

IDT7026L, IDT7026S - HIGH-SPEED 16K x 16 DUAL-PORT STATIC RAM

Datasheet Details

Part number	IDT7026L, IDT7026S
Manufacturer	IDT
File Size	245.83 KB
Description	HIGH-SPEED 16K x 16 DUAL-PORT STATIC RAM
Datasheet	IDT7026S-IDT.pdf
Note	This datasheet PDF includes multiple part numbers: IDT7026L, IDT7026S. Please refer to the document for exact specifications by model.

True Dual-Ported memory cells which allow simultaneous access of the same memory location.
High-speed access.
Commercial: 15/20/25/35/55ns (max. ).
Industrial: 20/25/35/55ns (max. ).
Military: 20/25/35/55ns (max. ).
Low-power operation.
IDT7026S Active: 750mW (typ. ) Standby: 5mW (typ. ).
IDT7026L Active: 750mW (typ. ) Standby: 1mW (typ. ).
Separate upper-byte and lower-byte control for multiplexed bus compatibility.
IDT7026 easily.
