IDT5V41065 - 2 OUTPUT PCIE GEN1/2 SYNTHESIZER

General Description

The IDT5V41065 is a PCIe Gen2 compliant spread spectrum capable clock generator.

The device has 2 differential HCSL outputs and can be used in communication or embedded systems to substantially reduce electro-magnetic interference (EMI).

Key Features

  • 2 - 0.7V current mode differential HCSL output pairs Features/Benefits.
  • 16-pin TSSOP and QFN packages; small board footprint.
  • Spread-spectrum capable; reduces EMI.
  • Outputs can be terminated to LVDS; can drive a wider variety of devices.
  • 25 MHz, 125 MHz and 200 MHz output frequencies; TSSOP only.
  • 100MHz and 200MHz output frequencies; VFQFPN package.
  • OE control pin; greater system power management.

📥 Download Datasheet

Datasheet Details

Part number IDT5V41065
Manufacturer IDT
File Size 301.96 KB
Description 2 OUTPUT PCIE GEN1/2 SYNTHESIZER
Datasheet download datasheet IDT5V41065 Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
IDT5V41066 PCIE GEN1/2 SYNTHESIZER Renesas
IDT5V41067A PCIE GEN1/2/3 CLOCK MULTIPLEXER Renesas
IDT5V41068A PCIE GEN1/2/3 CLOCK MULTIPLEXER Renesas
IDT5V40501 PLL CLOCK MULTIPLIER Renesas
IDT5V19EE604 EEPROM PROGRAMMABLE VCXO CLOCK GENERATOR Renesas

Other Datasheets by IDT

Part Number Description
IDT5V41066 4 OUTPUT PCIE GEN1/2 SYNTHESIZER
IDT5V40501 PLL CLOCK MULTIPLIER
IDT5V5218 Dual Channel Type-1/Type-2 M-LVDS to LVTTL/LVPECL/LVDS Transceiver
IDT5V927 Quad Output Clock Generator
IDT5V928 8 OUTPUT CLOCK GENERATOR

Full PDF Text Transcription (Reference)

The following content is an automatically extracted verbatim text from the original manufacturer datasheet and is provided for reference purposes only.

View original datasheet text

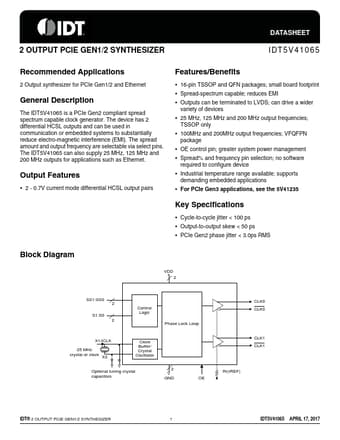

2 OUTPUT PCIE GEN1/2 SYNTHESIZER DATASHEET IDT5V41065 Recommended Applications 2 Output synthesizer for PCIe Gen1/2 and Ethernet General Description The IDT5V41065 is a PCIe Gen2 compliant spread spectrum capable clock generator. The device has 2 differential HCSL outputs and can be used in communication or embedded systems to substantially reduce electro-magnetic interference (EMI). The spread amount and output frequency are selectable via select pins. The IDT5V41065 can also supply 25 MHz, 125 MHz and 200 MHz outputs for applications such as Ethernet. Output Features • 2 - 0.
