IDT49FCT806A FAST CMOS BUFFER/CLOCK DRIVER

The IDT49FCT805/A and IDT49FCT806/A are clock drivers built using advanced dual metal CMOS technology. The IDT49FCT805/A is a non-inverting clock driver and the IDT49FCT806/A is an inverting clock driver. Each device consists of two banks of drivers. Each bank drives five output buffers from a stan.

IDT49FCT806A Features

* 0.5 MICRON CMOS Technology

* Guaranteed low skew < 700ps (max.)

* Low duty cycle distortion < 1ns (max.)

* Low CMOS power levels

* TTL compatible inputs and outputs

* Rail-to-rail output voltage swing

* High drive: -24mA IOH, 64mA IOL

IDT49FCT805_IntegratedDeviceTechnology.pdf

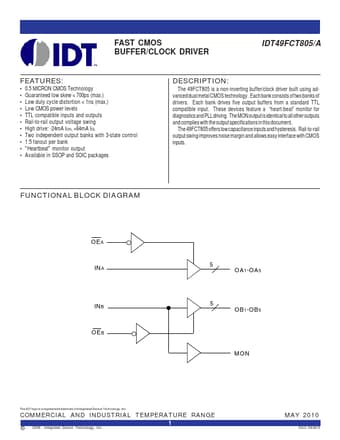

IDT49FCT806A Datasheet Preview — This datasheet PDF includes multiple part numbers: IDT49FCT806A, IDT49FCT805. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IDT49FCT806A, IDT49FCT805

Manufacturer:

IDT

File Size:

70.91 KB

Description:

Fast cmos buffer/clock driver.

Note:

This datasheet PDF includes multiple part numbers: IDT49FCT806A, IDT49FCT805.
Please refer to the document for exact specifications by model.
