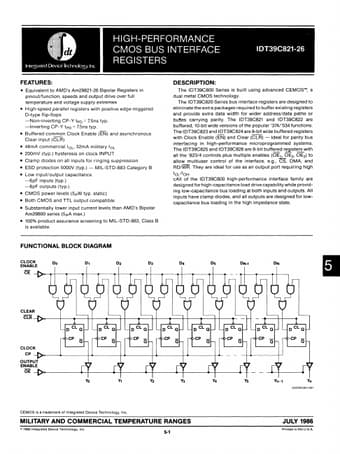

IDT39C821 - High Performance CMOS Bus Interface Register

Datasheet Details

Part number	IDT39C821
Manufacturer	IDT
File Size	338.56 KB
Description	High Performance CMOS Bus Interface Register
Datasheet	IDT39C821-IDT.pdf

The IDT39C800 Series is built using advanced CEMOS , a dual metal CMOS technology.

Equivalent to AM D's Am29821-26 Bipolar Registers in pinouVfunction, speeds and output drive over full temperature and voltage supply extremes.
High-speed parallel registers with positive edge-triggered D-type flip-flops -Non-inverting Cp-y tpD ~ 7.5ns typo -Inverting CP-Y tpD ~ 7.5ns typo.
Buffered common Clock Enable (EN) and asynchronous Clear input (ClR).
48mA commerciallQL, 32mA military 10l.
200mV (typ. ) hysteresis on clock INPUT.
Cla.
