DAC1408D650 Dual 14-bit DAC

DAC1408D650 Description

DAC1408D650 Dual 14-bit DAC; up to 650 Msps; 2, 4 or 8 interpolating with JESD204A interface Rev.06 * 2 July 2012 Product data sheet 1.
The DAC1408D650 is a high-speed 14-bit dual channel Digital-to-Analog Converter (DAC) with selectable 2, 4 or 8 interpolating filters optimized for.

DAC1408D650 Features

* Dual 14-bit resolution
* 650 Msps maximum update rate
* Selectable 2, 4 or 8 interpolation filters
* Input data rate up to 312.5 Msps
* Very low-noise cap-free integrated PLL
* 32-bit programmable NCO frequency
* Four JESD204A serial input lanes
* 1.8 V and 3.3

DAC1408D650 Applications

* Wireless infrastructure: LTE, WiMAX, GSM, CDMA, WCDMA, TD-SCDMA
* Communication: LMDS/MMDS, point-to-point
* Direct Digital Synthesis (DDS)
* Broadband wireless systems
* Digital radio links
* Instrumentation
* Automated Test Equipment (ATE) 4. Ordering information Tab

📥 Download Datasheet

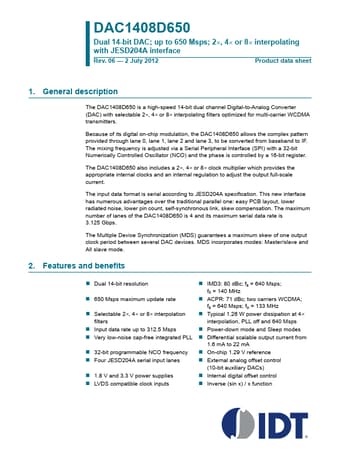

Preview of DAC1408D650 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
DAC1408D650
Manufacturer
IDT
File Size
688.28 KB
Datasheet
DAC1408D650-IDT.pdf
Description
Dual 14-bit DAC
