54FCT245T - FAST CMOS OCTAL BIDIRECTIONAL TRANSCEIVER

Description

The IDT octal bidirectional transceivers are built using an advanced dual metal CMOS technology.

The FCT245T is designed for asynchronous twoway communication between data buses.

Features

  • Std. , A, and C grades.
  • Low input and output leakage ≤1µA (max. ).
  • CMOS power levels.
  • True TTL input and output compatibility:.
  • VOH = 3.3V (typ. ).
  • VOL = 0.3V (typ. ).
  • High Drive outputs (-15mA IOH, 64mA IOL).
  • Meets or exceeds JEDEC standard 18 specifications.
  • Military product compliant to MIL-STD-883, Class B and DESC listed (dual marked).
  • Power off disable outputs permit "live insertion".
  • Available.

📥 Download Datasheet

Datasheet Details

Part number 54FCT245T
Manufacturer IDT
File Size 55.95 KB
Description FAST CMOS OCTAL BIDIRECTIONAL TRANSCEIVER
Datasheet download datasheet 54FCT245T Datasheet

📁 Similar Datasheet

Part Number Description Manufacturer
54FCT245T FAST CMOS OCTAL BIDIRECTIONAL TRANSCEIVER Renesas
54FCT245 OCTAL TRANSCEIVER PYRAMID
54FCT245 Octal Bidirectional Transceiver National Semiconductor
54FCT245AT FAST CMOS OCTAL BIDIRECTIONAL TRANSCEIVER Renesas
54FCT245CT FAST CMOS OCTAL BIDIRECTIONAL TRANSCEIVER Renesas

Other Datasheets by IDT

Part Number Description
54FCT245AT FAST CMOS OCTAL BIDIRECTIONAL TRANSCEIVER
54FCT245CT FAST CMOS OCTAL BIDIRECTIONAL TRANSCEIVER
54FCT244 FAST CMOS OCTAL BUFFER/LINE DRIVER
54FCT244A FAST CMOS OCTAL BUFFER/LINE DRIVER
54FCT244C FAST CMOS OCTAL BUFFER/LINE DRIVER

Full PDF Text Transcription

Click to expand full text

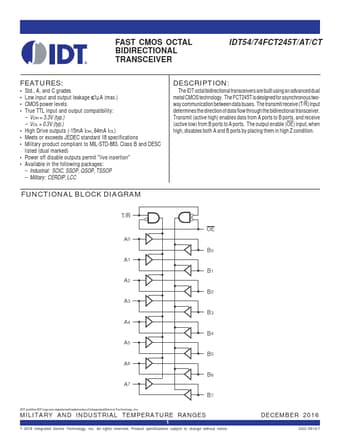

IDT54/74FCT245T/AT/CT FASTCMOSOCTALBIDIRECTIONALTRANSCEIVER MILITARYANDINDUSTRIALTEMPERATURERANGES FAST CMOS OCTAL BIDIRECTIONAL TRANSCEIVER IDT54/74FCT245T/AT/CT FEATURES: • Std., A, and C grades • Low input and output leakage ≤1µA (max.) • CMOS power levels • True TTL input and output compatibility: – VOH = 3.3V (typ.) – VOL = 0.3V (typ.) • High Drive outputs (-15mA IOH, 64mA IOL) • Meets or exceeds JEDEC standard 18 specifications • Military product compliant to MIL-STD-883, Class B and DESC listed (dual marked) • Power off disable outputs permit "live insertion" • Available in the following packages: – Industrial: SOIC, SSOP, QSOP, TSSOP – Military: CERDIP, LCC DESCRIPTION: The IDT octal bidirectional transceivers are built using an advanced dual metal CMOS technology.
