ID2206D - High Side & Low Side Gate Driver

ID2206D Description

ID2206D High Side & Low Side Gate Drive IC General .
The ID2206D is a high voltage, high speed power MOSFET driver with independent high and low side referenced output channels based on P_SUB P_EPI proce.

ID2206D Features

*  Fully operational to +600 V  3.3 V input logic compatible  dV/dt Immunity ±50 V/nsec  Gate drive supply range from 10 V to 18 V  Typically output Source/Sink current capability 200mA/350mA  Typically -7V negative Vs bias capability  Matched propagation delay for both channels  ID2206D (LO i

ID2206D Applications

*  Small and medium- power motor driver  Power MOSFET or IGBT driver  Half
* Bridge Power Converters  Full-Bridge Power Converters  Any Complementary Drive Converters Package Options Order Information Part Number ID2206D Order Code ID2206DSEC-R1 Package SOIC8 Type Reel 1 REV 1.0 DEC 2

📥 Download Datasheet

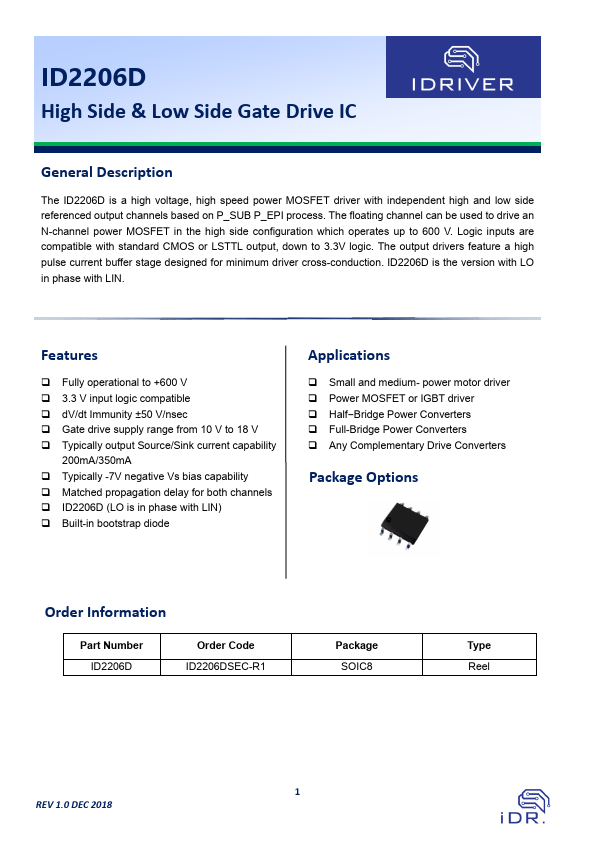

Preview of ID2206D PDF

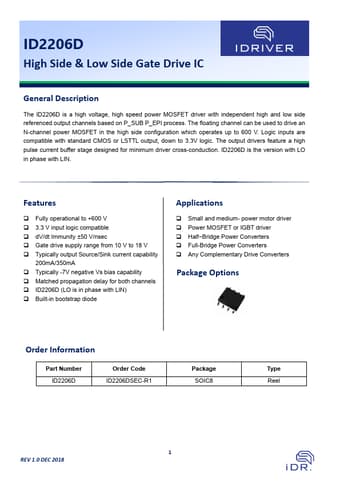

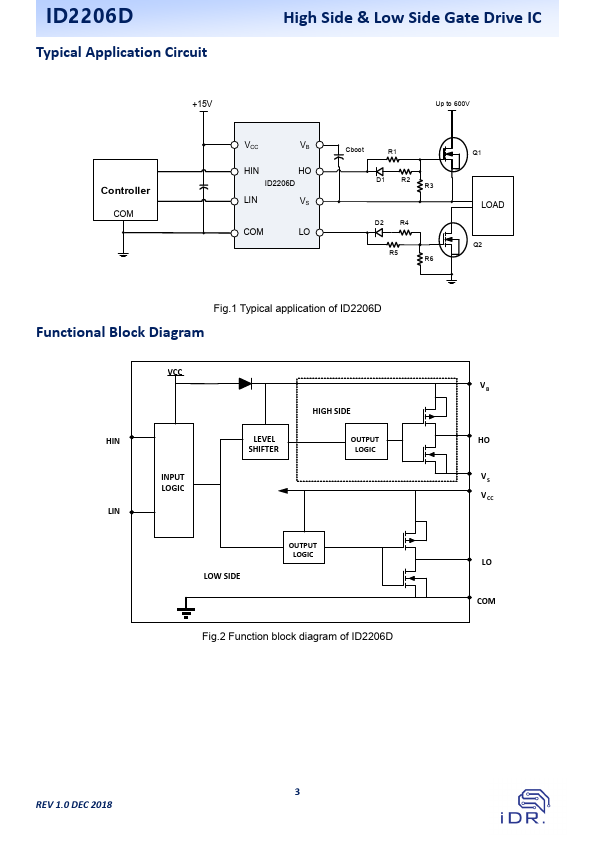

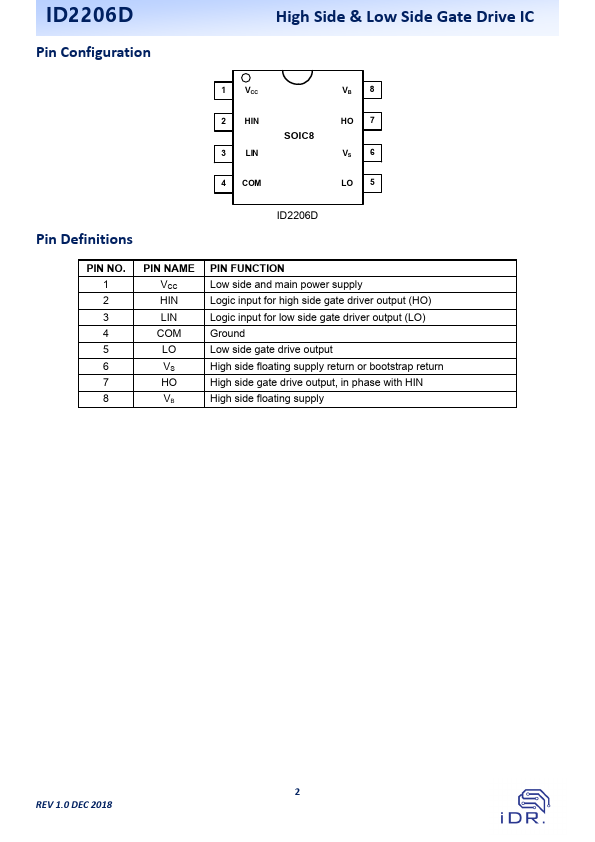

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
ID2206D
Manufacturer
IDRIVER
File Size
549.05 KB
Datasheet
ID2206D-IDRIVER.pdf
Description
High Side & Low Side Gate Driver
