ICS853016 - LVPECL/ECL FANOUT BUFFER

Name: ICS853016
SKU: ICS853016-572032

ICST

📥 Download Datasheet

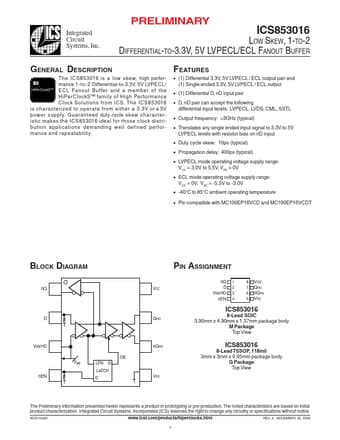

ICS853016 Datasheet Preview — Preview of ICS853016 PDF

Datasheet Details

Part number	ICS853016
Manufacturer	ICST
File Size	252.09 KB
Description	LVPECL/ECL FANOUT BUFFER
Datasheet	ICS853016_ICST.pdf

ICS853016 Product details

Description

The ICS853016 is a low skew, high performance 1-to-2 Differential-to-3.3V, 5V LVPECL/ HiPerClockS™ ECL Fanout Buffer and a member of the HiPerClockS™ family of High Perfor mance Clock Solutions from ICS.

Features

(1) Differential 3.3V, 5V LVPECL / ECL output pair and (1) Single-ended 3.3V, 5V LVPECL / ECL output.
(1) Differential D, nD input pair.
D, nD pair can accept the following differential input levels: LVPECL, LVDS, CML, SSTL.
Output frequency: >3GHz (typical).
Translates any single ended input signal to 3.3V to 5V LVPECL levels with resistor bias on nD input.
Duty cycle skew: 10ps (typical).
Propagation delay: 400ps (typical).
