IC62LV5128LL 512Kx8 bit Low Voltage and Ultra Low Power CMOS Static RAM

The ICSI IC62LV5128L and IC62LV5128LL is a low voltage, ICSI's low voltage, six transistor (6T), CMOS technology. The device is targeted to satisfy the demands of the state-of-the-art technologies such as cell phones and pagers. When CE is HIGH (deselected), the device assumes a standby mode at whic.

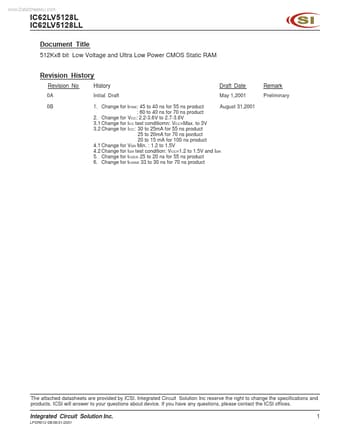

www.DataSheet4U.com IC62LV5128L IC62LV5128LL Document Title 512Kx8 bit Low Voltage and Ultra Low Power CMOS Static RAM Revision History Revision No 0A 0B History Initial Draft Draft Date May 1,2001 Remark Preliminary 1. Change for tPWE: 45 to 40 ns for 55 ns product August 31,2001 : 60 to 40 ns for 70 ns product 2. Change for VCC: 2.2-3.6V to 2.7-3.6V 3.1 Change for ICC test conditiomn: VCC=Max. to 3V 3.2 Change for ICC: 30 to 25mA for 55 ns product 25 to 20mA for 70 ns porduct 20 to 15 mA.

IC62LV5128LL Features

* Access times of 55, 70, 100 ns

* CMOS Low power operation:

* 60 mW (typical) operation

* 3 µW (typical) standby

* Low data retention voltage: 1.5V (min.)

* Output Enable (OE) and Chip Enable (CE) inputs for ease in applications

* TTL compatib

IC62LV5128L_ICSI.pdf

IC62LV5128LL Datasheet Preview — This datasheet PDF includes multiple part numbers: IC62LV5128LL, IC62LV5128L. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IC62LV5128LL, IC62LV5128L

Manufacturer:

ICSI

File Size:

202.58 KB

Description:

512kx8 bit low voltage and ultra low power cmos static ram.

Note:

This datasheet PDF includes multiple part numbers: IC62LV5128LL, IC62LV5128L.
Please refer to the document for exact specifications by model.
