IC62LV1024ALL 128K x 8 Ultra Low Power and Low VCC SRAM

The ICSI IC62LV1024AL and IC62LV1024ALL are low power and low Vcc,131,072-word by 8-bit CMOS static RAMs. They are fabricated using ICSI's high-performance CMOS technology. This highly reliable process coupled with innovative circuit design techniques, yields higher performance and low power consump.

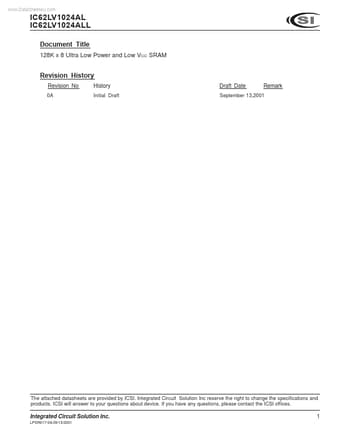

www.DataSheet4U.com IC62LV1024AL IC62LV1024ALL Document Title 128K x 8 Ultra Low Power and Low VCC SRAM Revision History Revision No 0A History Initial Draft Draft Date Remark September 13,2001 The attached datasheets are provided by ICSI. Integrated Circuit Solution Inc reserve the right to change the specifications and products. ICSI will answer to your questions about device. If you have any questions, please contact the ICSI offices. Integrated Circuit Solution Inc. LPSR017-0A 09/13/.

IC62LV1024ALL Features

* Access times of 45, 55, and 70 ns

* Low active power: 60 mW (typical)

* Low standby power: 15 µW (typical) CMOS standby

* Low data retention voltage: 2V (min.)

* Available in Low Power (-L) and Ultra Low Power (-LL)

* Output Enable (OE) and two Chip

IC62LV1024AL_ICSI.pdf

IC62LV1024ALL Datasheet Preview — This datasheet PDF includes multiple part numbers: IC62LV1024ALL, IC62LV1024AL. Please refer to the document for exact specifications by model.

Datasheet Details

Part number:

IC62LV1024ALL, IC62LV1024AL

Manufacturer:

ICSI

File Size:

145.28 KB

Description:

128k x 8 ultra low power and low vcc sram.

Note:

This datasheet PDF includes multiple part numbers: IC62LV1024ALL, IC62LV1024AL.
Please refer to the document for exact specifications by model.
