ICS889831 - 1-TO-4 DIFFERENTIAL LVPECL-TO-LVPECL/ECL FANOUT BUFFER

Name: ICS889831
SKU: ICS889831-603453

ICS

📥 Download Datasheet

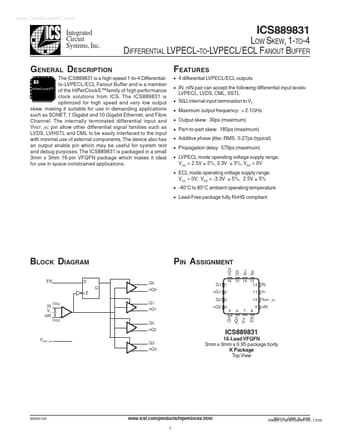

ICS889831 Datasheet Preview — Preview of ICS889831 PDF

Datasheet Details

Part number	ICS889831
Manufacturer	ICS
File Size	311.10 KB
Description	1-TO-4 DIFFERENTIAL LVPECL-TO-LVPECL/ECL FANOUT BUFFER
Datasheet	ICS889831_ICS.pdf

ICS889831 Product details

Description

The ICS889831 is a high speed 1-to-4 Differentialto-LVPECL/ECL Fanout Buffer and is a member HiPerClockS™ of the HiPerClockS™ family of high performance clock solutions from ICS.

Features

4 differential LVPECL/ECL outputs.
IN, nIN pair can accept the following differential input levels: LVPECL, LVDS, CML, SSTL.
50Ω internal input termination to VT.
Maximum output frequency: > 2.1GHz.
Output skew: 30ps (maximum).
Part-to-part skew: 185ps (maximum).
Additive phase jitter, RMS: 0.27ps (typical).
Propagation delay: 570ps (maximum).
LVPECL mode operating voltage supply range: VCC = 2.5V ± 5%, 3.3V ± 5%,.
