IMD256M16R30HG8GNF-107 - 4Gb DDR3 SDRAM

📥 Download Datasheet

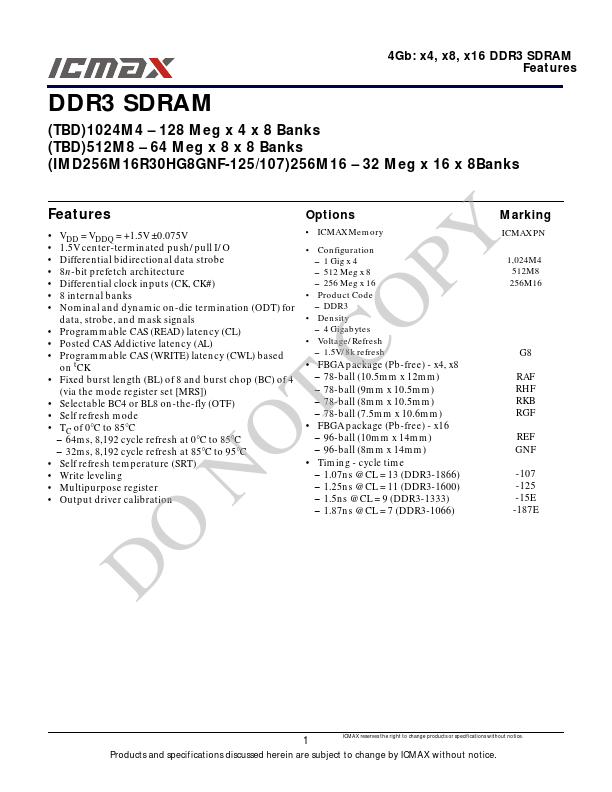

IMD256M16R30HG8GNF-107 Datasheet Preview — Preview of IMD256M16R30HG8GNF-107 PDF

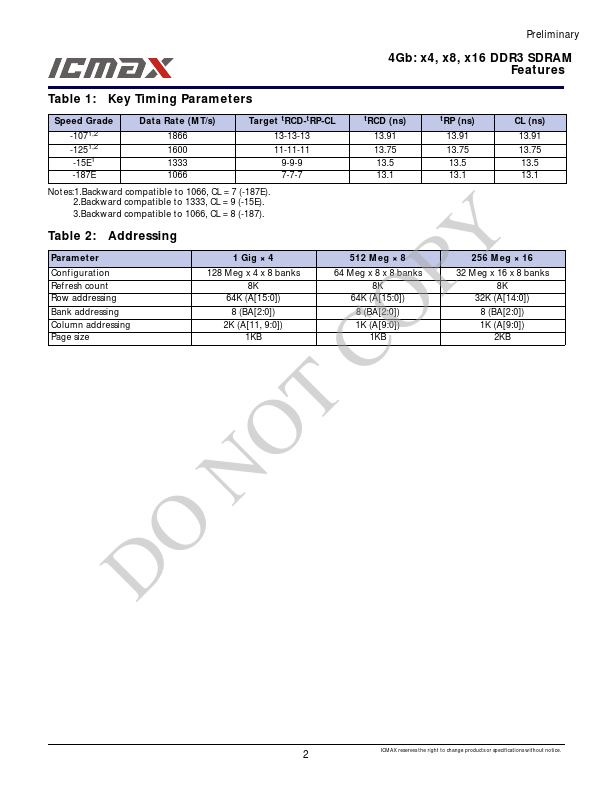

datasheet Preview Page 2

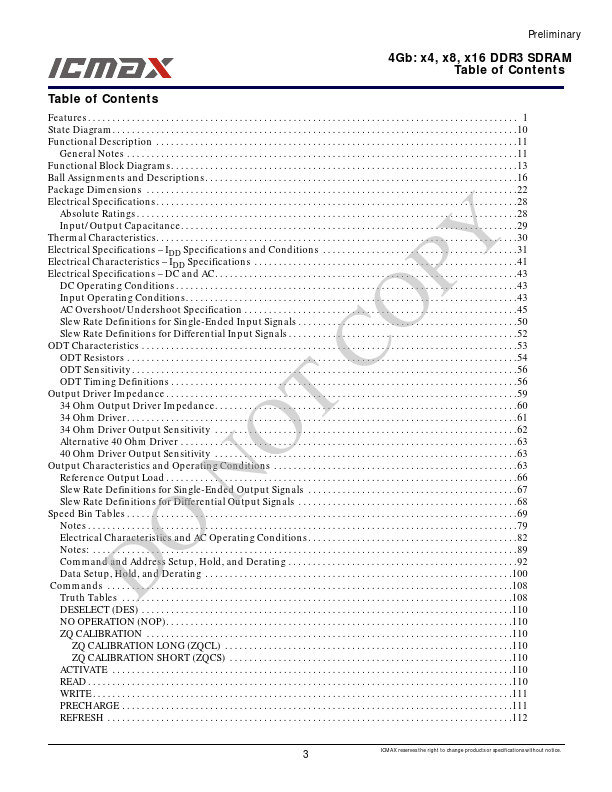

datasheet Preview Page 3

Datasheet Details

Part number	IMD256M16R30HG8GNF-107
Manufacturer	ICMAX
File Size	6.14 MB
Description	4Gb DDR3 SDRAM
Datasheet	IMD256M16R30HG8GNF-107-ICMAX.pdf

IMD256M16R30HG8GNF-107 Product details

Description

. . .13 Ball Assignments and Descriptions

Features

DDR3 SDRAM (TBD)1024M4.
128 Meg x 4 x 8 Banks (TBD)512M8.
64 Meg x 8 x 8 Banks (IMD256M16R30HG8GNF-125/107)256M16.
32 Meg x 16 x 8Banks Features Options.
VDD = VDDQ = +1.5V ±0.075V.
1.5V center-terminated push/pull I/O.
Differential bidirectional data strobe Y.
8n-bit prefetch architecture.
Differential clock inputs (CK, CK#) P.
8 internal banks.
Nominal and dynamic on-die termination (ODT) for data, str.
