IP101GR - Fast Ethernet Transceiver

Download the IP101GR datasheet PDF (IP101G included). The manufacturer datasheet provides complete specifications, pinout details, electrical characteristics, and typical applications for fast ethernet transceiver.

Description

IP101G is an IEEE 802.3/802.3u compliant single-port Fast Ethernet Transceiver for both 100Mbps and 10Mbps operations.

Features

  • z 10/100Mbps IEEE 802.3/802.3u compliant Fast Ethernet transceiver z Supports 100Base-TX/FX Media Interface z Supports MII/ RMII Interface z Supports Auto MDI/MDIX function z Power Management Tool - APS, auto power saving while Link-off - 802.3az, protocol based power saving - WOL+, light traffic power saving - PWD, force-off power saving - Supports MII with LPI for RX and TX - Supports RMII with LPI for RX z Supports Base Line Wander compensation z Supports Interrupt function z Built in synchro.

📥 Download Datasheet

Note: The manufacturer provides a single datasheet file (IP101G-ICPlus.pdf) that lists specifications for multiple related part numbers.

Datasheet Details

Part number IP101GR
Manufacturer IC Plus
File Size 3.37 MB
Description Fast Ethernet Transceiver
Datasheet download datasheet IP101GR Datasheet

📁 Similar Datasheet

  • IP1001 - Full Function Synchronous Buck Power Block (International Rectifier)
  • IP103H - Voltage and Current Controller (Interpion semiconductor)
  • IP1060A - SWITCHED MODE POWER SUPPLY CONTROL CIRCUIT (Seme LAB)
  • IP1060B - SWITCHED MODE POWER SUPPLY CONTROL CIRCUIT (Seme LAB)
  • IP1117 - LDO Regulator (Interpion semiconductor)
  • IP113A - LAN Transceiver - Datasheet Reference (ICp)
  • IP113ALF - 10 /100Base-Tx/Fx Media Converter (ICp)
  • IP113F - Managed 10/100Base-TX / FX Media Converter (ICp)
  • IP113MLF - Managed 10/100Base-TX / FX Media Converter (IPc)
  • IP117 - 1.5 AMP POSITIVE ADJUSTABLE VOLTAGE REGULATOR FOR HI-REL APPLICATIONS (Seme LAB)
Other Datasheets by IC Plus
  • IP101GRI - Fast Ethernet Transceiver
  • IP101G - Fast Ethernet Transceiver
  • IP101GA - Fast Ethernet Transceiver
  • IP101A - Single port 10/100 Fast Ethernet Transceiver
  • IP101ALF - Single port 10/100 Fast Ethernet Transceiver
  • IP101LF - Single port 10/100 Fast Ethernet Transceiver
  • IP1000ALF - Gigabit Ethernet NIC Single Chip
  • IP1001LF - Integrated 10/100/1000 Gigabit Ethernet Transceiver

Full PDF Text Transcription

Click to expand full text

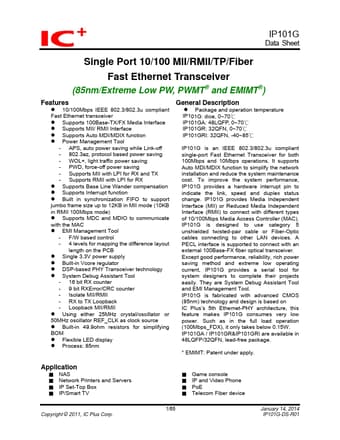

IP101G Data Sheet Single Port 10/100 MII/RMII/TP/Fiber Fast Ethernet Transceiver (85nm/Extreme Low PW, PWMT® and EMIMT®) Features z 10/100Mbps IEEE 802.3/802.3u compliant Fast Ethernet transceiver z Supports 100Base-TX/FX Media Interface z Supports MII/ RMII Interface z Supports Auto MDI/MDIX function z Power Management Tool - APS, auto power saving while Link-off - 802.
