IP101G - Fast Ethernet Transceiver

IC Plus

📥 Download Datasheet

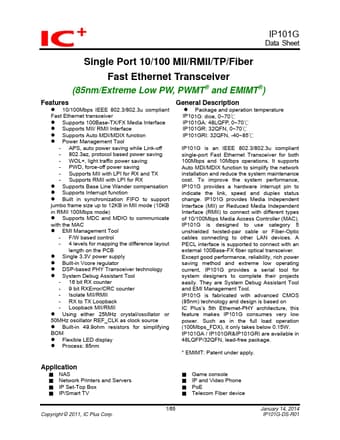

IP101G Datasheet Preview — Preview of IP101G PDF

Datasheet Details

Part number	IP101G
Manufacturer	IC Plus
File Size	3.37 MB
Description	Fast Ethernet Transceiver
Datasheet	IP101G-ICPlus.pdf

IP101G Product details

Description

z Package and operation temperature IP101G: dice, 0~70℃ IP101GA: 48LQFP, 0~70℃ IP101GR: 32QFN, 0~70℃ IP101GRI: 32QFN, -40~85℃ IP101G is an IEEE 802.3/802.3u compliant single-port Fast Ethernet Transceiver for both 100Mbps and 10Mbps operations.It supports Auto MDI/MDIX function to simplify the network installation and reduce the system maintenance cost.To improve the system performance, IP101G provides a hardware interrupt pin to indicate the link, speed and duplex status change.IP101G provid

Features

z 10/100Mbps IEEE 802.3/802.3u compliant Fast Ethernet transceiver z Supports 100Base-TX/FX Media Interface z Supports MII/ RMII Interface z Supports Auto MDI/MDIX function z Power Management Tool - APS, auto power saving while Link-off - 802.3az, protocol based power saving - WOL+, light traffic power saving - PWD, force-off power saving - Supports MII with LPI for RX and TX - Supports RMII with LPI for RX z Supports Base Line Wander compensation z Supports Interrupt function z Built in synchro.
