iC-PT3325H, iC-PT3320H-IC - 6-CH PHASED ARRAY OPTO ENCODERS

IC-Haus

Datasheet Details

Part number	iC-PT3325H, iC-PT3320H-IC
Manufacturer	IC-Haus
File Size	1.02 MB
Description	6-CH PHASED ARRAY OPTO ENCODERS
Datasheet	iC-PT3320H-IC-Haus.pdf
Note	This datasheet PDF includes multiple part numbers: iC-PT3325H, iC-PT3320H-IC. Please refer to the document for exact specifications by model.

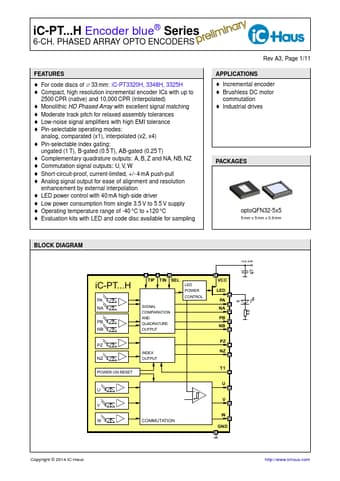

o For code discs of ∅ 33 mm: iC-PT3320H, 3348H, 3325H o Compact, high resolution incremental encoder ICs with up to 2500 CPR (native) and 10,000 CPR (interpolated) o Monolithic HD Phased Array with excellent signal matching o Moderate track pitch for relaxed assembly tolerances o Low-noise signal ampliﬁers with high EMI tolerance o Pin-selectable operating modes: analog, comparated (x1), interpolated (x2, x4) o Pin-selectable index gating: ungated (1 T), B-gated (0.5 T), AB-gated (0.25 T) o Comp.
