AT5250E, AT5250 - 500mA CMOS Ultra-Low Dropout Positive Voltage Regulator

AT5250E Description

AT5250/AT5250A/AT5250E 500mA CMOS Ultra-Low Dropout Positive Voltage Regulator .
The AT5250/AT5250A/AT5250E series voltage regulators are specifically designed for use as a power source for video instruments, handheld communication.

AT5250E Features

* Maximum Output Current: 500mA (Within Maximum Power Dissipation)
* Output voltage Range: from 1.5V to 5.0V in 0.1V Increments
* Output Accuracy AT5250/AT5250E = VOUT ±2% AT5250A= VOUT ±1%
* Highly Accurate: Output Voltage ±2%
* Low Power Consumption: Typ.1.0μA @VOUT =5.0V

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AT5250E, AT5250. Please refer to the document for exact specifications by model.

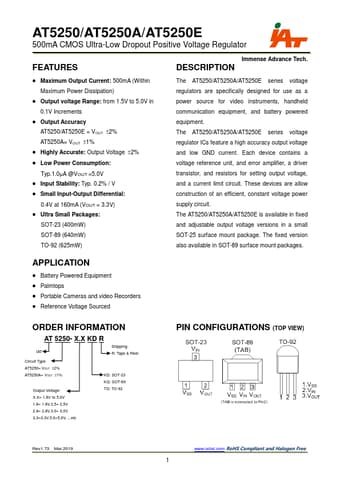

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AT5250E, AT5250
Manufacturer
IAT
File Size
0.98 MB
Datasheet
AT5250-IAT.pdf
Description
500mA CMOS Ultra-Low Dropout Positive Voltage Regulator
Note
This datasheet PDF includes multiple part numbers: AT5250E, AT5250.
Please refer to the document for exact specifications by model.
