AiP74HC237, AiP74HC237-I 3-to-8 Line Decoder/Demultiplexer

AiP74HC237 Description

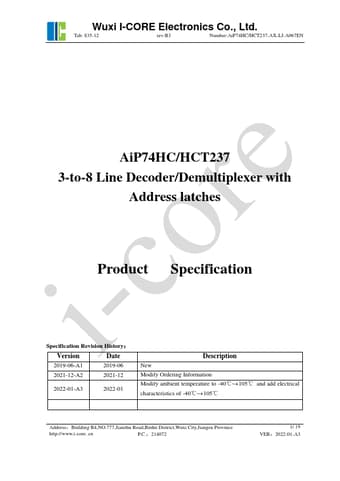

Wuxi I-CORE Electronics Co., Ltd.Tab: 835-12 rev:B3 Number:AiP74HC/HCT237-AX-LJ-A067EN i-core AiP74HC/HCT237 3-to-8 Line Decoder/Demultiplexer wi.
2019-06-A1 2019-06 New 2021-12-A2 2021-12 Modify Ordering Information 2022-01-A3 2022-01 Modify ambient temperature to -40℃~+105℃ and add ele.

AiP74HC237 Features

* Input levels: For AiP74HC237: CMOS level For AiP74HCT237: TTL level
* Combines 3-to-8 decoder with 3-bit latch
* Multiple input enable for easy expansion or independent controls
* Active HIGH mutually exclusive outputs
* Low-power dissipation
* Specified from -40℃ to +105℃

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: AiP74HC237, AiP74HC237-I. Please refer to the document for exact specifications by model.
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
AiP74HC237, AiP74HC237-I
Manufacturer
I-CORE
File Size
0.96 MB
Datasheet
AiP74HC237-I-CORE.pdf
Description
3-to-8 Line Decoder/Demultiplexer
Note
This datasheet PDF includes multiple part numbers: AiP74HC237, AiP74HC237-I.
Please refer to the document for exact specifications by model.
