AIP31068L, AIP31068L-I - 16COM / 40SEG DRIVER & CONTROLLER

I-CORE

📥 Download Datasheet

AIP31068L Datasheet Preview — This datasheet PDF includes multiple part numbers: AIP31068L, AIP31068L-I. Please refer to the document for exact specifications by model.

Datasheet Details

Part number	AIP31068L, AIP31068L-I
Manufacturer	I-CORE
File Size	865.70 KB
Description	16COM / 40SEG DRIVER & CONTROLLER
Datasheet	AIP31068L-I-CORE.pdf
Note	This datasheet PDF includes multiple part numbers: AIP31068L, AIP31068L-I. Please refer to the document for exact specifications by model.

AIP31068L Product details

Description

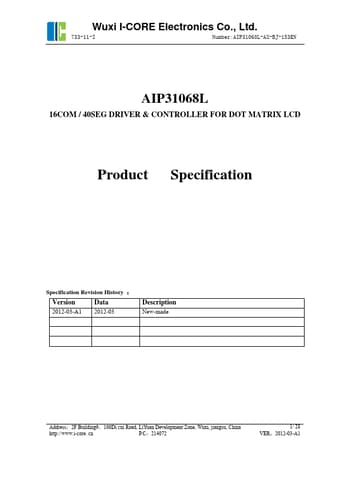

New-made Address：2F Building9，100Di cui Road, LiYuan Development Zone, Wuxi, jiangsu, China http://www.i-core.cn P.C：214072 1/ 28 VER：2012-03-A1 Wuxi I-CORE Electronics Co., Ltd.733-11-I Number:AIP31068L-AX-BJ-153EN 1、GENERAL DESCRIPTION AIP31068L is a dot matrix LCD driver & controller LSI which is fabricated by low power CMOS technology.

Features

Character type dot matrix LCD driver & controller.
Internal driver: 16 common and 40 segment signal output.
Two types interface: 3-lines serial interface and 2-lines serial interface (2-lines interface when power on).
Display character pattern: 5×8 dots format (192 kinds) & 5×11 dots format (64 kinds).
The Special character pattern is directly programmable by the Character Generator RAM.
A customer character pattern is programmable by ma.
