HP6018 CMOS LDO

Description

HP6018 300mA, Low Consumption, Low Dropout, CMOS LDO GENERAL .
The HP6018 series are low dropout linear regulators and optimized to provide a high performance solution for battery power system to delivery low quie.

📥 Download Datasheet

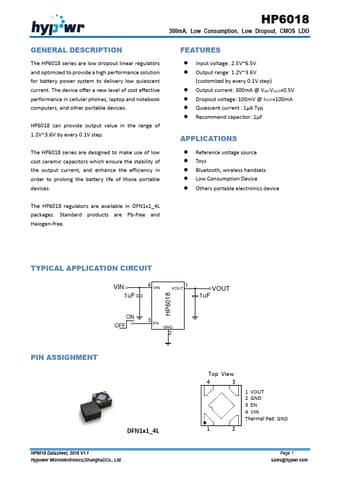

HP6018 Datasheet Preview — Preview of HP6018 PDF

Datasheet Specifications

Part number: HP6018
Manufacturer: Hypower
File Size: 1.31 MB
Datasheet: HP6018-Hypower.pdf
Description: CMOS LDO

Features

* Input voltage : 2.5V~6.5V
* Output range: 1.2V~3.6V (customized by every 0.1V step)
* Output current: 300mA @ VIN-VOUT=0.5V
* Dropout voltage: 100mV @ IOUT=100mA
* Quiescent current : 1μA Typ.

Applications

* Reference voltage source
* Toys
* Bluetooth, wireless handsets
* Low Consumption Device
* Others portable electronics device TYPICAL APPLICATION CIRCUIT VIN 1uF 4 VIN VOUT 1 VOUT 1uF HP6018 ON OFF 3 EN GND 2 PIN ASSIGNMENT DFN1x1_4L HP6018 Datasheet, 2018 V1.1 Hypower
