GL3820 - all videoswitching allowing connections between the periTV plug and video sections IC

Hynix Semiconductor

Datasheet Details

Part number	GL3820
Manufacturer	Hynix Semiconductor
File Size	27.65 KB
Description	all videoswitching allowing connections between the periTV plug and video sections IC
Datasheet	GL3820_HynixSemiconductor.pdf

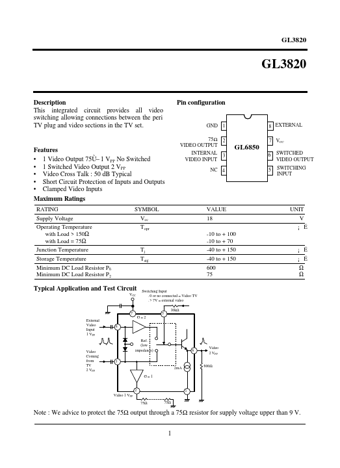

This integrated circuit provides all video switching allowing connections between the peri TV plug and video sections in the TV set.

1 Video Output 75Ù.
1 VPP No Switched.
1 Switched Video Output 2 VPP.
Video Cross Talk : 50 dB Typical.
Short Circuit Protection of Inputs and Outputs.
Clamped Video Inputs Maximum Ratings RATING Supply Voltage Operating Temperature with Load > 150Ω with Load = 75Ω Junction Temperature Storage Temperature Minimum DC Load Resistor P6 Minimum DC Load Resistor P2 SYMBOL Vcc Topr GL6850 6 5.
