RS3BBF - SURFACE MOUNT FAST RECOVERY RECTIFIER

This page provides the datasheet information for the RS3BBF, a member of the RS3ABF SURFACE MOUNT FAST RECOVERY RECTIFIER family.

Datasheet Summary

Features

Glass Passivated Die Construction.
Low reverse leakage.
Low Forward Voltage Drop and High Current Capability.
Ideally Suited for Automated Assembly.
Plastic Material: UL Flammability Classification Rating 94V-0.

Datasheet Details

Part number	RS3BBF
Manufacturer	Hottech
File Size	238.87 KB
Description	SURFACE MOUNT FAST RECOVERY RECTIFIER
Datasheet	RS3BBF Datasheet

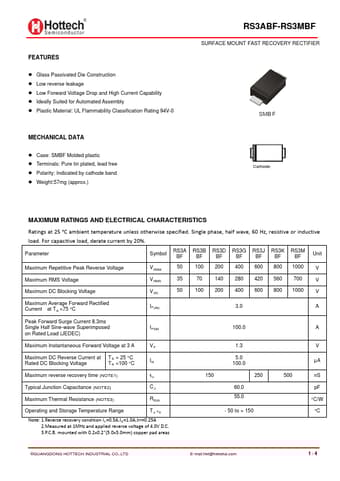

Additional preview pages of the RS3BBF datasheet.

📁 Similar Datasheet

RS3BBF - Surface Mount Fast Recovery Rectifier (SEMTECH)

RS3BBF - Fast Recovery Rectifier (GME)

RS3BB - Surface Mount Rectifiers (GME)

RS3BB - Surface Mount Rectifiers (LGE)

RS3BB - SURFACE MOUNT FAST RECOVERY RECTIFIER DIODES (Sunmate)

RS3BB - SURFACE MOUNT FAST RECOVERY GLASS PASSIVATED RECTIFIERS (HY)

RS3BB - SURFACE MOUNT FAST RECOVERY RECTIFIER (MEI SEMI)

RS3BB - Surface Mount Fast Recovery Rectifiers (Jingdao Microelectronics)

RS3BB - SURFACE MOUNT FAST RECOVERY RECTIFIERS (LITE-ON)

RS3BB - 3.0A SURFACE MOUNT FAST RECOVERY RECTIFIER (DIODES)

Full PDF Text Transcription

Click to expand full text

FEATURES  Glass Passivated Die Construction  Low reverse leakage  Low Forward Voltage Drop and High Current Capability  Ideally Suited for Automated Assembly  Plastic Material: UL Flammability Classification Rating 94V-0 MECHANICAL DATA  Case: SMBF Molded plastic  Terminals: Pure tin plated, lead free  Polarity: Indicated by cathode band  Weight:57mg (approx.) RS3ABF-RS3MBF SURFACE MOUNT FAST RECOVERY RECTIFIER SMB F 10 Cathode MAXIMUM RATINGS AND ELECTRICAL CHARACTERISTICS Ratings at 25 °C ambient temperature unless otherwise specified. Single phase, half wave, 60 Hz, resistive or inductive load. For capacitive load, derate current by 20%.
