HOA6970, HOA6961 Transmissive Optoschmitt Sensor

HOA6970 Description

HOA696X/697X Transmissive Optoschmitt Sensor .
The HOA696X/697X series consists of an infrared emitting diode facing an Optoschmitt detector encased in a black thermoplastic housing.

HOA6970 Features

* Direct TTL interface
* Buffer or inverting logic available
* Three device output options
* Four mounting configurations
* Choice of detector aperture

HOA6970 Applications

* in which maximum rejection of ambient light is important, and situations in which maximum position resolution is desired. The HOA696X/697X series employs plastic molded components. For additional component information see SEP8506 and SDP8XX4. Housing material is polysulfone. Housings are soluble in

📥 Download Datasheet

This datasheet PDF includes multiple part numbers: HOA6970, HOA6961. Please refer to the document for exact specifications by model.

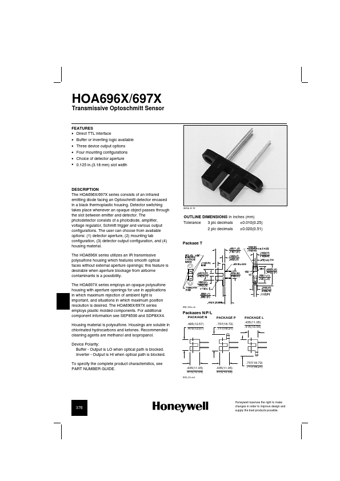

datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HOA6970, HOA6961
Manufacturer
Honeywell
File Size
920.50 KB
Datasheet
HOA6961-Honeywell.pdf
Description
Transmissive Optoschmitt Sensor
Note
This datasheet PDF includes multiple part numbers: HOA6970, HOA6961.
Please refer to the document for exact specifications by model.
