HMC1051 (HMC1051 / HMC1052) 1 AND 2-AXIS MAGNETIC SENSORS

HMC1051 Description

www.DataSheet4U.com HMC1051 / HMC1052 SENSOR PRODUCTS 1 AND 2-AXIS MAGNETIC SENSORS .
The Honeywell HMC1051Z and HMC1052 are high performance magnetoresistive sensor designs on a single chip.

HMC1051 Features

* Small 8-Pin SIP or 10-Pin MSOP Packages Two AMR Bridges in One Package Wide Field Range of +/- 6 Gauss 1.0 mV/V/gauss Sensitivity High Accuracy Compassing (Error

HMC1051 Applications

* Compassing
* Navigation Systems
* Attitude Reference
* Traffic Detection
* Medical Devices
* Position Sensing Web Sites: www. magneticsensors. com www. ssec. honeywell. com Email: ssec. customer. service@honeywell. com 2001 HMC1051/1052 Published Jul 2001 Page 1 Honeywell Solid Sta

📥 Download Datasheet

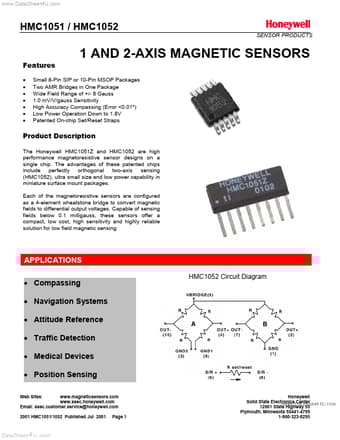

Preview of HMC1051 PDF
datasheet Preview Page 2 datasheet Preview Page 3

Datasheet Details

Part number
HMC1051
Manufacturer
Honeywell
File Size
465.63 KB
Datasheet
HMC1051_Honeywell.pdf
Description
(HMC1051 / HMC1052) 1 AND 2-AXIS MAGNETIC SENSORS
